The 6-1123723-0: Tin-on-tin contact finish is rated for moderate mating cycles in dry indoor environments; the UL94 V-0 PBT housing and -25°C to 105°C range cover industrial and lighting applications.

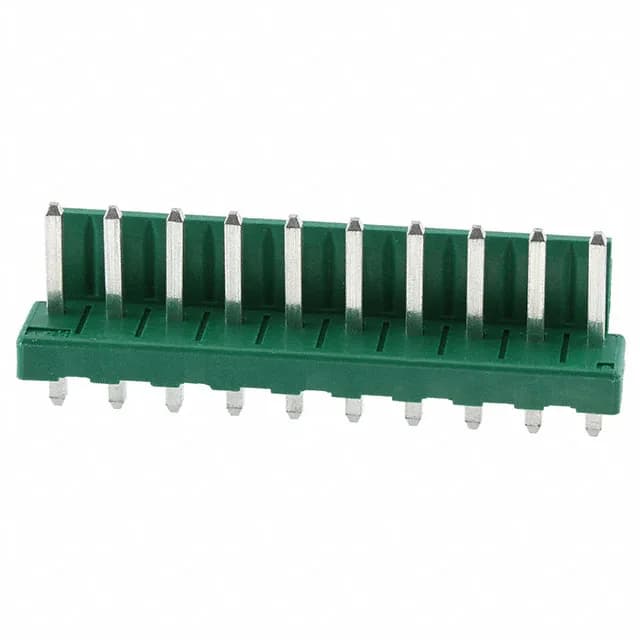

6-1123723-0 TE Economy Power Header, 10 Pos, 3.96mm
MPN6-1123723-0
Active
TE Connectivity AMP Connectors Economy Power header, order code 6-1123723-0, 10 positions, single row, 3.96 mm pitch, 7.5 A, 250 VAC, tin-plated mating contacts, through-hole, solder termination, friction lock.
$0.3259Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Economy Power |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 250VAC |
| Current rating | 7.5A |
| Operating temperature | -25°C~105°C |
| Contact material | Brass |
| Insulation color | Green |
| Insulation height | 0.118\" (3.00mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial, Lighting |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 10 |
| Contact finish - post | Tin |
| Contact length - post | 0.146\" (3.70mm) |
| Overall contact length | 0.567\" (14.40mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.303\" (7.70mm) |
Product details
Frequently asked questions
What compliance documentation does TE Connectivity AMP Connectors provide for 6-1123723-0?
RoHS and REACH compliance documentation is available from the manufacturer.
