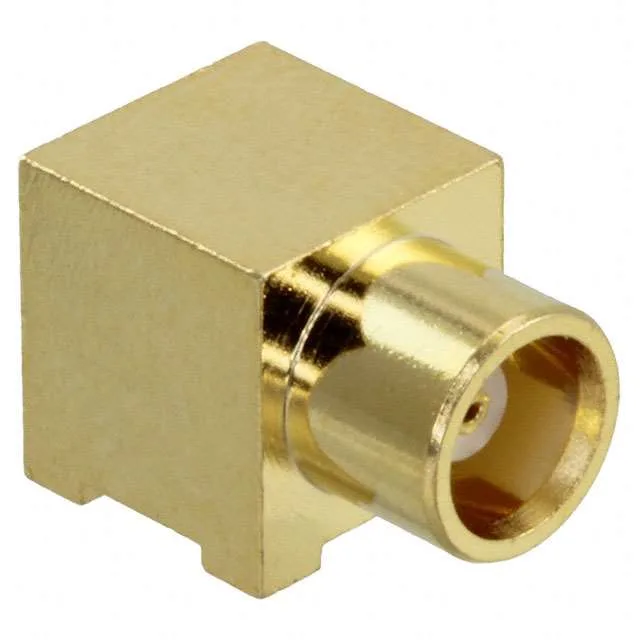

6-1337583-0 — TE Connectivity AMP Connectors product photo

TE Greenpar MCX Jack, 50 Ohm, 6 GHz, SMT Right Angle

MPN6-1337583-0
Active

TE Connectivity Greenpar MCX jack, female socket, 50 Ohms, 6 GHz max, 500 mating cycles, SMT right angle, gold body finish, snap-on fastening.

$3.9260Ref. price · indicative, final on quote
StockIn Stock (37)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

6-1337583-0 Technical Specifications
ParameterValue
SeriesGreenpar
Mounting typeSurface Mount, Right Angle
Connector typeJack, Female Socket
Fastening typeSnap-On
Voltage rating335 V
Frequency - max6 GHz
Operating temperature-40°C ~ 85°C
Body materialBrass
Housing colorGold
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageTape & Reel (TR)
Impedance50 Ohms
Body finishGold
Mating cycles500
Insertion loss0.1dB
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

The 6-1337583-0: Right-angle surface-mount termination lets it sit flush at the board edge, saving vertical clearance in compact RF modules.

RF Performance and Contact Design

Insertion loss is rated at 0.1 dB — that is low enough to ignore in most link budgets, but worth noting if you are stacking several connectors in a cascade. Beryllium copper holds its spring force over 500 mating cycles, so the contact resistance stays stable through repeated connect-disconnect cycles in test or field-service gear.

Surface-mount, right-angle orientation — the signal pin and shield legs solder directly to the PCB pads in a single reflow pass.
