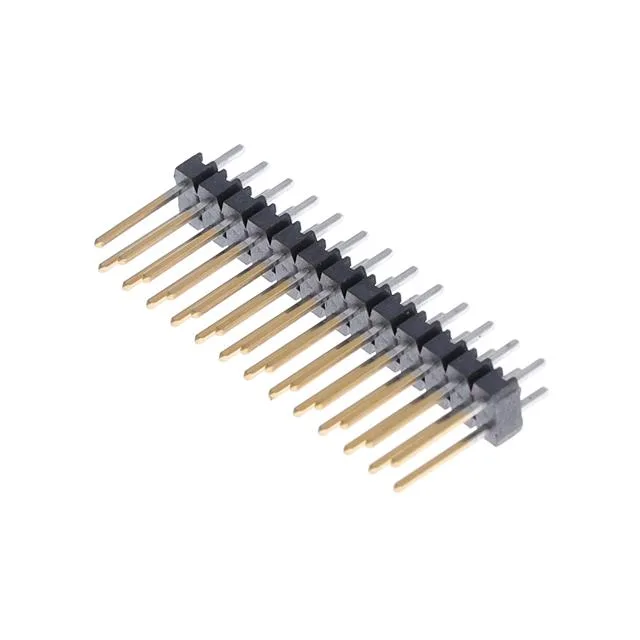

TE Connectivity AMP Connectors AMPMODU Mod II header, breakaway, 26 positions, 2 rows, 0.100" (2.54mm) pitch, unshrouded, through-hole solder, gold mating finish, 3 A rating, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.090\" (2.29mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 26 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Overall contact length | 0.533\" (13.55mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
In high-vibration applications, a shrouded header with a detent lock (like the 1-1871673-2) would be a more secure choice.
The black LCP housing withstands operating temperatures from -65°C to 105°C. All 26 positions are loaded — no breakaway snap-off. The square male pins mate with standard 0.025" square-post receptacles.
This part is sourced through independent distribution against an RFQ. No stock-holding claim is made here.
This unshrouded header mates with standard AMPMODU Mod II receptacles that accept 0.025" square posts. The mating half is a separate order; the receptacle housing and crimp terminals are not included.
