The 6-146281-0: The breakaway design means the 10-position strip is part of a longer pin strip; you can snap it to length, though this order code ships as a fixed 10-position loaded-all configuration.

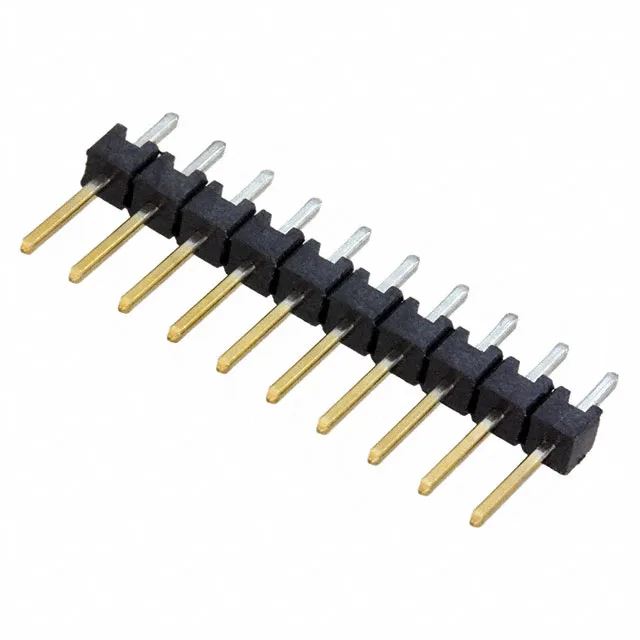

6-146281-0 TE Connectivity AMPMODU Mod II Header, 10 Pos
MPN6-146281-0
Active
TE Connectivity AMPMODU Mod II unshrouded breakaway header, 10 positions, single row, 0.100" (2.54mm) pitch, through-hole solder termination, male square pins with 30µinch gold on the mating face, rated 3A per contact.
$3.1500Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAMPMODU Mod II
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.090\" (2.29mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Contact finish - post | Tin |
| Contact length - post | 0.120\" (3.05mm) |
| Overall contact length | 0.440\" (11.18mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What mates with the 6-146281-0 header?
Any AMPMODU Mod II receptacle or IDC socket with 0.100" (2.54mm) pitch, 10 positions, single row. The unshrouded header mates with standard female housings from the same series.
Can I use 6-146281-0 as a replacement for 5-146281-0?
The base product number 146281 is shared, but the full order code differs. Verify the pinout and dimensions against your BOM — the pitch, position count, and plating are identical per the spec table, but the exact part number must match the assembly drawing.
How is 6-146281-0 quoted for volume purchases?
No stock-holding claim; availability and pricing confirmed at RFQ through independent distribution channels.
