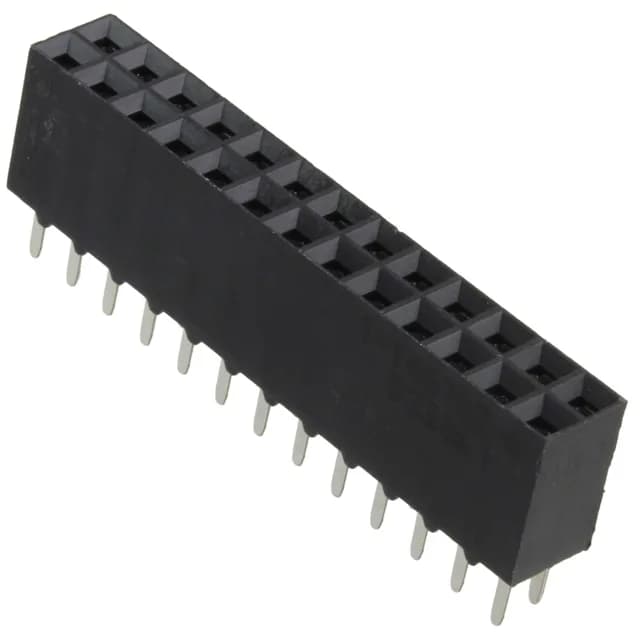

TE Connectivity AMPMODU Mod IV receptacle, order code 6-147424-3, 26 positions, dual row, 0.100" (2.54 mm) pitch, 2 A, gold-plated mating contacts, through-hole, solder termination.
TE 6-147424-3 AMPMODU Mod IV Receptacle, 26 Pos, 2.54mm
MPN6-147424-3
Active
TE Connectivity AMPMODU Mod IV receptacle, order code 6-147424-3, 26 positions, dual row, 0.100" (2.54 mm) pitch, 2 A, gold-plated mating contacts, through-hole, solder termination.
$3.5833Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod IV |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Current rating | 2A |
| Operating temperature | -65°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.320\" (8.13mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 26 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.115\" (2.92mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
Product details
Frequently asked questions
What is 6-147424-3's listed style and connector type?
The 6-147424-3 is a receptacle (female socket) listed under style Board to Board or Cable, designed for dual-row 0.100" pitch applications.
What compliance documentation does TE Connectivity provide for 6-147424-3?
RoHS and REACH compliance documentation is available from TE Connectivity for this part number.
