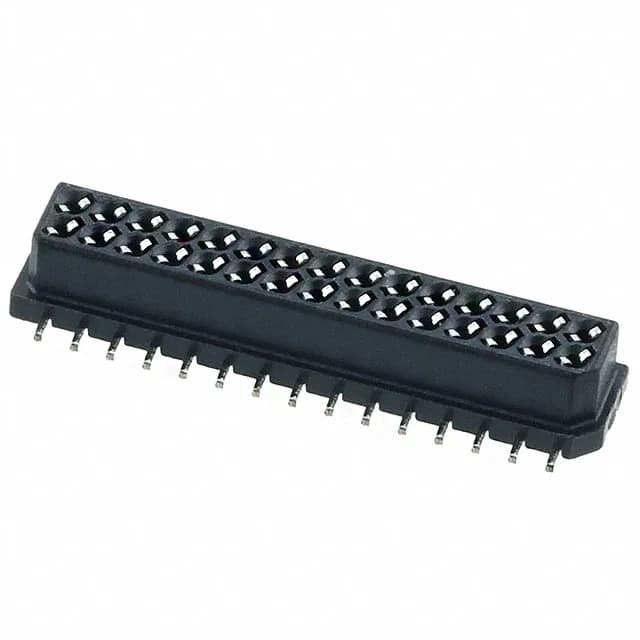

TE Connectivity AMP Connectors Fine Pitch series, 30-position board-to-board receptacle, 1.25mm pitch, surface-mount, push-pull fastening, 0.5A per contact at 50V, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Fine Pitch |
| Type | Forked |
| Mounting | Surface Mount |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 50V |
| Current rating | 0.5A |
| Operating temperature | -30°C ~ 105°C |
| Insulation color | Black |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Parameter | Value |
|---|---|
| Features | Board Guide |
| Termination | Solder |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.049\" (1.25mm) |
| Positions | 30 |
| Row spacing - mating | 0.049\" (1.25mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
The 6-176311-0: 30-position dual-row receptacle on a 1.25mm pitch, surface-mount termination. The 0.5A per-contact rating and 50V ceiling place it firmly in signal-level interconnect — not power delivery. The Fine Pitch series is designed for dense board-to-board stacking where PCB real estate is tight.
For a complete BOM, you will need the mating header and the solder termination is on the receptacle side only.
No official pin-compatible equivalent or successor is recorded from TE Connectivity. A functional replacement would require matching the 1.25mm pitch, 30 positions, SMT, and board-to-board style — but a board spin may be needed.
The mating pitch is 0.049" (1.25mm) and the mounting type is Surface Mount (SMT). It is a dual-row receptacle with a push-pull fastening system.
