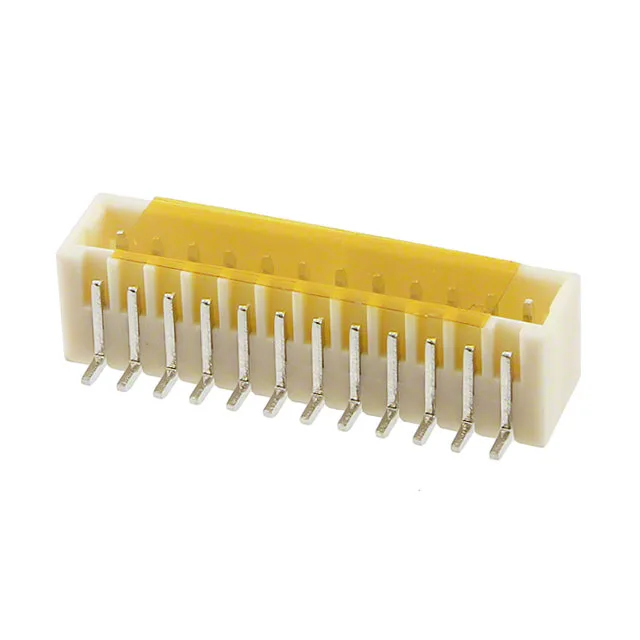

TE Connectivity AMP Connectors High Performance Interconnect (HPI) header, order code 6-1775443-2, 12 positions, single row, 1.50 mm pitch, 3 A, 250 VAC, tin-plated mating contacts, surface-mount, solder termination.
| Parameter | Value |
|---|---|
| Series | High Performance Interconnect (HPI) |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Voltage rating | 250VAC |
| Current rating | 3A |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.197\" (5.00mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Pick and Place |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.059\" (1.50mm) |
| Positions | 12 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact length - mating | 0.106\" (2.70mm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
The 6-1775443-2 is the 12-circuit member of TE's High Performance Interconnect (HPI) board-to-cable/wire header line. Mating contacts are tin-plated, rated 3 A at 250 VAC, and the header mounts surface-mount with solder termination.
The header is supplied in Tape & Reel (TR) and Cut Tape (CT) packaging.
