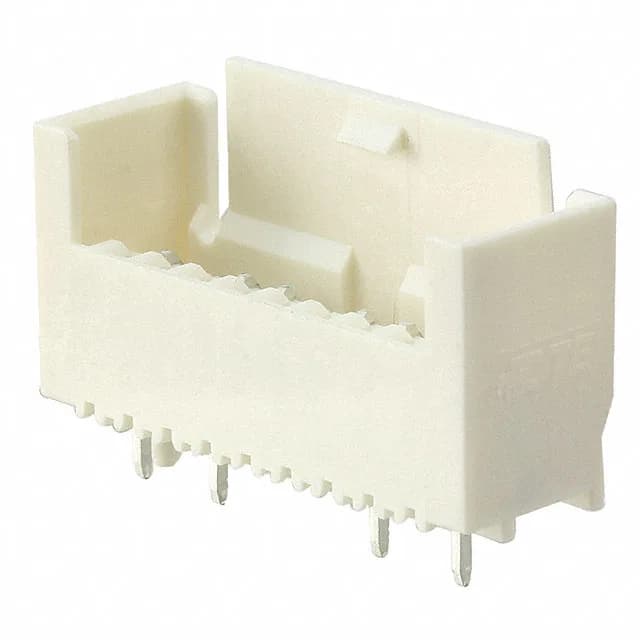

TE Connectivity AMP Connectors header, order code 6-1971817-9, 9 positions, single row, 2.50 mm pitch, tin-plated mating contacts, through-hole, solder termination, UL94 V-0.
| Parameter | Value |
|---|---|
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Operating temperature | -40°C~120°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.610\" (15.49mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Features | Board Guide, Glow Wire Compliant |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 9 |
| Contact finish - post | Tin |
| Contact length - post | 0.114\" (2.90mm) |
| Contact finish - mating | Tin |
The 6-1971817-9: It mates with a board-to-cable/wire receptacle and carries a 2.50 mm pitch.
The locking ramp provides audible feedback on full mate and resists disconnection from cable strain.
RoHS and REACH compliance information is available from the manufacturer.
