TE Connectivity AMP Connectors 6-2232044-5 — Pin Headers

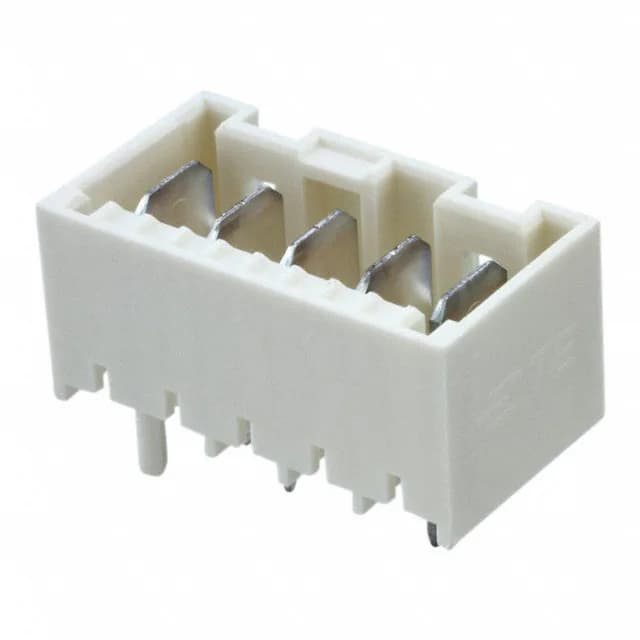

TE Connectivity 6-2232044-5 Header, 5 Pos, 5mm, 20A

MPN6-2232044-5
Active

TE Connectivity, Header, 6-2232044-5, 5 positions, 1 row, 5.00 mm pitch, 20 A, 250 VAC, through-hole, vertical, silver-plated contacts, UL94 V-0.

$1.6700Ref. price · indicative, final on quote
RoHSRoHS Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6-2232044-5 key specifications
ParameterValue
TypeTab
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Holder
Voltage rating250VAC
Current rating20A
Operating temperature-40°C ~ 120°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.504\" (12.80mm)
Insulation materialPolyamide (PA), Nylon
Material flammability ratingUL94 V-0

All specifications

6-2232044-5 additional specifications
ParameterValue
StyleBoard to Cable/Wire
PackageBulk
FeaturesBoard Guide, Glow Wire Compliant
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose
Contact shapeRectangular
Rows1
Pitch0.197\" (5.00mm)
Positions5
Contact finish - postSilver
Contact length - post0.138\" (3.50mm)
Contact finish - matingSilver

Product details

The closest peer in the same base series is the 1-2232960-3, a 3-position header at 2.50 mm pitch rated 2 A with tin-plated contacts. That part is a signal-grade interconnect; the 6-2232044-5 is a power-grade part with 20 A per circuit, silver plating, and a 5.00 mm pitch — not a functional substitute. The 5-position count and 250 VAC rating match the BOM line for a single-phase power input or output on a PCB.

The through-hole termination and board guide simplify alignment during assembly. Silver plating on the contacts is chosen for high-current duty where tin would oxidise under thermal cycling; expect good performance in repeated mate/unmate cycles in a power application.

Frequently asked questions

Where can I buy the 6-2232044-5?

Contact the storefront with your BOM for a same-day quote.

What is the current rating of the 6-2232044-5?

The 6-2232044-5 is rated 20 A per circuit at 250 VAC, with silver-plated contacts and a 5.00 mm pitch that provides adequate creepage for that voltage.

What is the mating connector for the 6-2232044-5?

The 6-2232044-5 mates with a 5-position receptacle housing in the same 2232044 series that accepts the matching crimp terminals — the latch holder provides positive locking.
