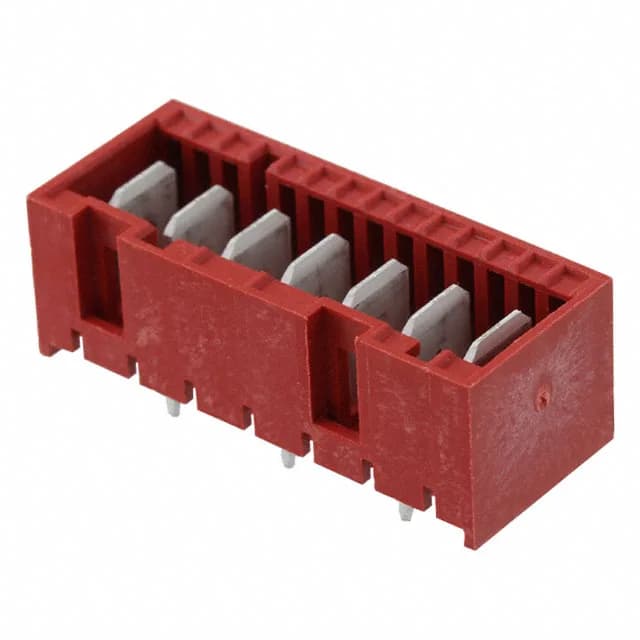

The 6-2232055-7: This is a 7-position, single-row, shrouded 4-wall header on 5.00 mm pitch — the board footprint is defined by the 0.197" spacing between pins. The mating contacts are tin-plated tabs (rectangular contact shape).
Voltage, Temperature, and Safety Ratings
The 120°C ceiling suits the connector for enclosed equipment where ambient heat from transformers or power supplies is present. The -40°C low end covers cold storage or outdoor cabinet applications. The glow wire compliant feature adds an extra safety layer for household appliance designs.
This header mates with TE's 5.00 mm pitch receptacle housings that accept tab contacts. The 4-wall shroud protects the pins from stubbing during mating.
