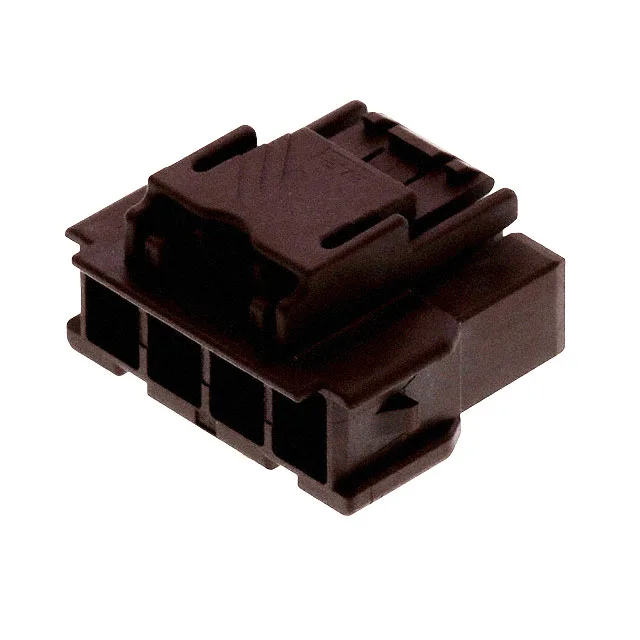

What This 4-Position Power Triple Lock Housing Does
Rated for -55°C to 140°C, it's built for environments where standard nylon housings soften.
That's a hard requirement for appliances, HVAC, and lighting fixtures where a failed connector can't sustain a flame. The brown colour is standard for glow-wire-rated housings in this series — it's not a cosmetic choice, it's the material formulation.
Sourcing the Right Crimp Terminals
The housing ships without contacts — you order the female blade socket terminals separately. TE's Power Triple Lock terminal family uses a standard crimp profile; match the wire gauge to the terminal part number.
How It Compares to Similar TE Plug Housings
Against the 1-1376477-6 (6-position, 2.50 mm pitch, red PA66 housing), the 6-2232265-4 runs a wider 6.00 mm pitch and uses PA6 with glow wire compliance — the 1-1376477-6 is glass-filled PA66 without the glow wire rating. The 1-1644055-3 is a 6-position dual-row plug at 6.35 mm pitch with a latch holder, not a single-row latch lock. The 1-1703532-1 is a sealed 2-position plug at 9.50 mm pitch with a locking ramp. None are a direct drop-in; the 6-2232265-4 fills the 4-position, single-row, glow-wire slot in the Power Triple Lock range.
