TE Connectivity AMP Connectors 6-2271128-2
MPN6-2271128-2
Active

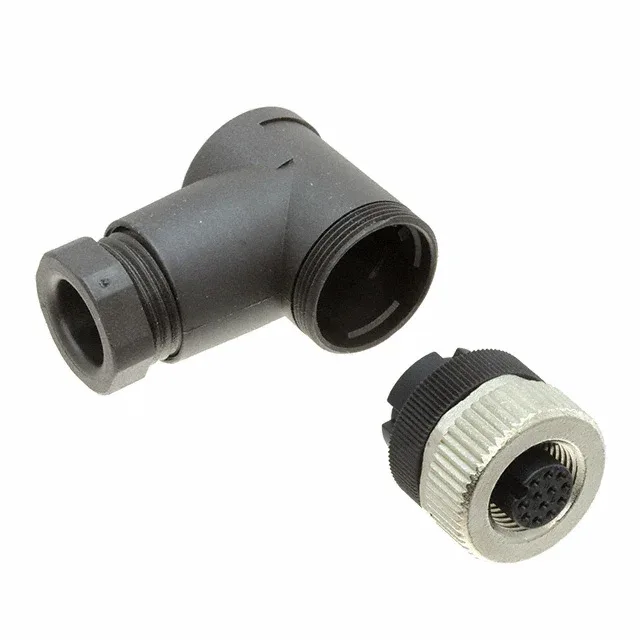

M12, FEMALE, A CODE, R/A, 12P, P
$59.79Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesM12
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | M12 |
| Mounting | Free Hanging (In-Line), Right Angle |
| Connector type | Plug, Female Sockets |
| Fastening type | Threaded |
| Voltage rating | 30VAC/DC |
| Current rating | 2A |
| IP rating | IP67 - Dust Tight, Waterproof |
| Cable opening | 0.236\" ~ 0.315\" (6.00mm ~ 8.00mm) |
| Operating temperature | -40°C ~ 85°C |
| Color | Black, Silver |
| Shell material | Polybutylene Terephthalate (PBT) |
| Insert material | Polyamide (PA), Nylon |
All specifications
| Parameter | Value |
|---|---|
| Contact material | Brass |
| Primary material | Plastic |
| Backshell material, plating | Polybutylene Terephthalate (PBT) |
| Package | Bag |
| Features | Backshell, Coupling Nut |
| Shielding | Unshielded |
| Orientation | A |
| Termination | Screw |
| Applications | Industrial Automation |
| Positions | 12 |
| Shell size - insert | M12-12 |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 19.7µin (0.50µm) |
