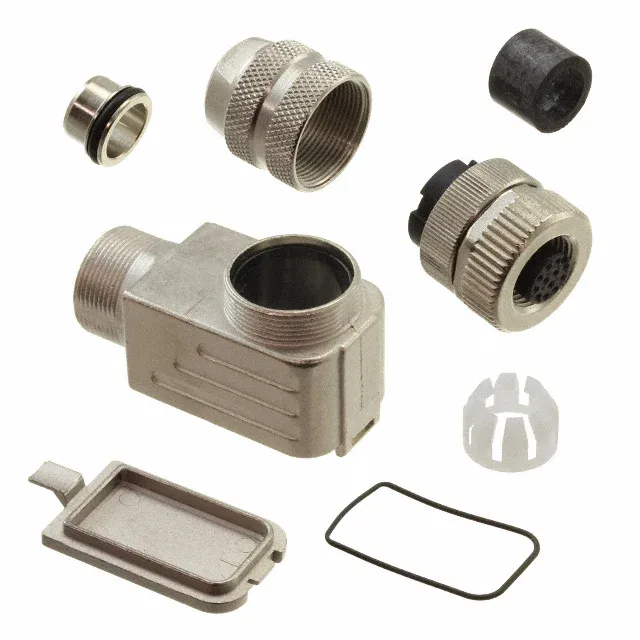

M12,FEMALE,A CODE,R/A,12P,PG9,SH
$58.09Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | M12 |
| Mounting type | Free Hanging (In-Line), Right Angle |
| Connector type | Plug, Female Sockets |
| Fastening type | Threaded |
| Voltage rating | 30VAC/DC |
| Current rating | 2A |
| Ingress protection | IP67 - Dust Tight, Waterproof |
| Cable opening | 0.236\" ~ 0.315\" (6.00mm ~ 8.00mm) |
| Operating temperature | -40°C ~ 85°C |
| Color | Silver |
| Shell material | Zinc Die Cast |
| Insert material | Polyamide (PA), Nylon |
| Contact material | Bronze |
| Primary material | Metal |
| Backshell material, plating | Zinc Die Cast, Nickel |
| Package | Bag |
| Features | Backshell, Coupling Nut |
| Shielding | Shielded |
| Orientation | A |
| Termination | Screw |
| Applications | Industrial Automation |
| Shell finish | Nickel |
| Positions | 12 |
| Shell size - insert | M12-12 |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 19.7µin (0.50µm) |
Sourcing this connector
TE Connectivity AMP Connectors 6-2271129-2 is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against TE Connectivity AMP Connectors and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
