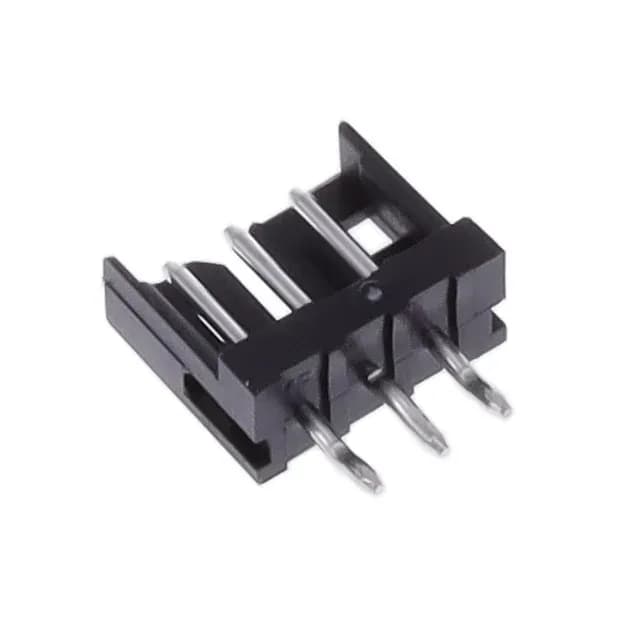

The 6-292161-3: This is a TE Connectivity CT series header, 3 positions on 2.00 mm pitch, through-hole with kinked pin solder tails. The 3-wall shrouding and detent lock give it a positive mate with the matching CT receptacle — the lock clicks home and holds against vibration in light industrial or consumer gear. Rated 125 VAC, with current limited by the wire gauge on the mating half. Tin-on-tin contact interface — adequate for moderate-cycle applications where the connector isn't mated daily for years. Black insulation colour, circular male pins in brass.
6-292161-3 TE Connectivity CT Header, 3-Pos, 2mm Pitch
MPN6-292161-3
Active
TE Connectivity AMP Connectors CT series, Board to Cable/Wire, Header, 3 Positions, 2.00mm Pitch, Through Hole, Kinked Pin Solder, Shrouded 3 Wall, Detent Lock, UL94 V-0
$0.3100Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesCT
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | CT |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 125VAC |
| Current rating | Varies by Wire Gauge |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.268\" (6.80mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 3 Wall |
| Termination | Kinked Pin, Solder |
| Applications | General Purpose |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Overall contact length | 0.370\" (9.40mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.177\" (4.50mm) |
