SODIMM socket for SDRAM modules

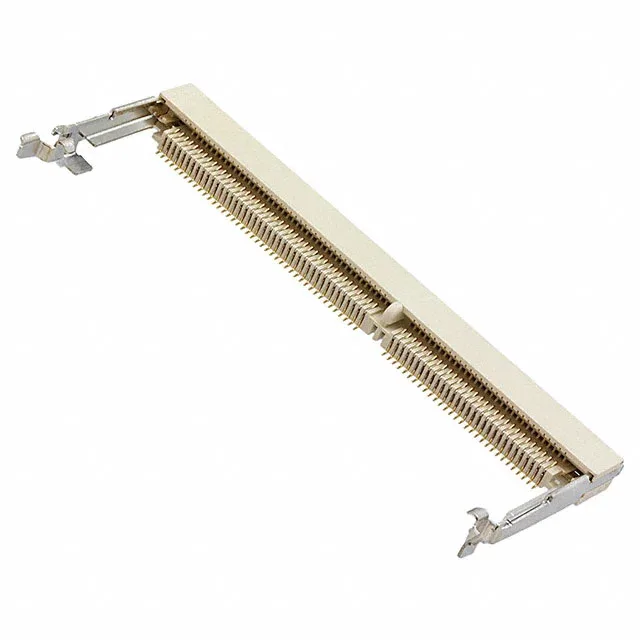

The 6-390113-1 is a 144-position SODIMM connector from TE Connectivity AMP Connectors, designed for SDRAM memory modules in a right-angle surface-mount package. It accepts a 0.039" (1.00mm) thick module card and features a natural housing with board guide and integral latches for secure module retention.
Right-angle SMD footprint and gold contacts
The surface-mount termination suits automated reflow assembly. Contacts are gold-plated with a thickness of 10.0µin (0.25µm), providing a corrosion-resistant interface for repeated mating cycles.
