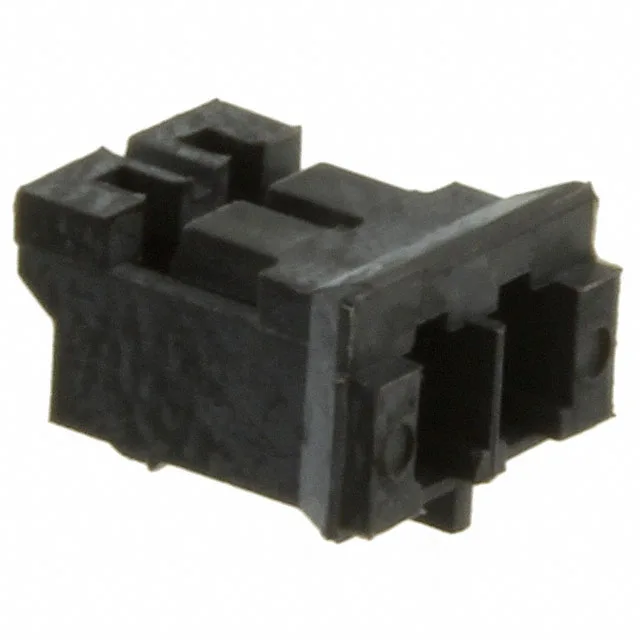

2-Position Single-Row Receptacle Housing, 2.00 mm Pitch
The 0.079" (2.00mm) pitch keeps the connector compact for space-constrained harness layouts, while the single-row configuration matches a 2-circuit BOM line where only two signal or low-power conductors are needed. The housing accepts the matching female crimp terminal (sold separately), and the assembly mates with a corresponding pin header of the same HPI series and pitch. The 2-position count is the minimum circuit count in the HPI receptacle range, making this part a fit for point-to-point power or signal links where a single conductor pair is broken out.
The base product number 440129 identifies the housing family; the matching terminal part number is not listed in this record, but the HPI series uses a standard crimp socket compatible with 2.00mm-pitch housings.
Mates with a 2-position pin header of the same HPI series at 2.00mm pitch — the receptacle housing accepts the male header's pins into the female socket cavities. The single-row layout means the header must also be single-row, 2 positions. The housing has no locking ramp or secondary lock noted in this record, so retention relies on the terminal's own lance and the friction fit of the mated pair. For applications requiring vibration resistance, consider a housing with an integral locking feature or add a secondary retention method.
