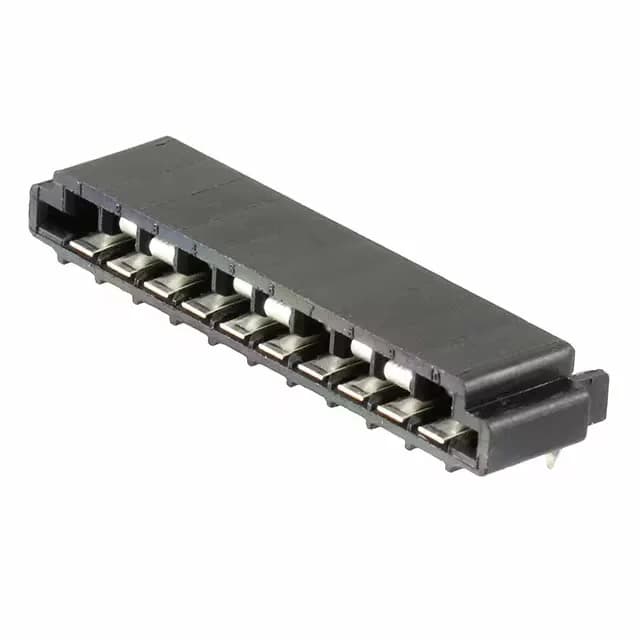

TE Connectivity Triomate FFC/FPC connector, order code 6-520314-0, 10 positions, 0.100" (2.54 mm) pitch, top contact, tin-plated phosphor bronze contacts, through-hole right-angle, kinked pin termination.
| Parameter | Value |
|---|---|
| Series | Triomate |
| Mounting | Through Hole, Right Angle |
| Cable end type | Straight |
| Flat flex type | FFC, FPC |
| Connector (Contact type) | Contacts, Top |
| Voltage rating | 250V |
| Current rating | 1A |
| Operating temperature | -55°C~105°C |
| Housing color | Black |
| Contact material | Phosphor Bronze |
| Housing material | Polyester Thermoplastic, Glass Filled |
| Height above board | 0.190\" (4.83mm) |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.100\" (2.54mm) |
| Package | Tray |
| Termination | Kinked Pin |
| Mating cycles | 25 |
| Contact finish | Tin |
| FFC, FCB thickness | 0.13mm ~ 0.38mm |
| Positions | 10 |
The 6-520314-0 is the 10-position member of TE's Triomate FFC/FPC connector line, housed in a black UL94 V-0 polyester thermoplastic shell rated -55°C to 105°C. Tin-plated phosphor bronze contacts rated 1 A at 250 V, with 25 mating cycles.
Through-hole right-angle mounting with kinked pin termination. The 0.190" (4.83 mm) height above board suits edge-mount or low-profile cable routing.
