Through-Hole Termination and Push-Pull Fastening
The dual-row arrangement with 0.100" row spacing accommodates standard 0.100" pitch headers, making it a direct mate for AMPMODU Mod IV pin headers of matching position count.

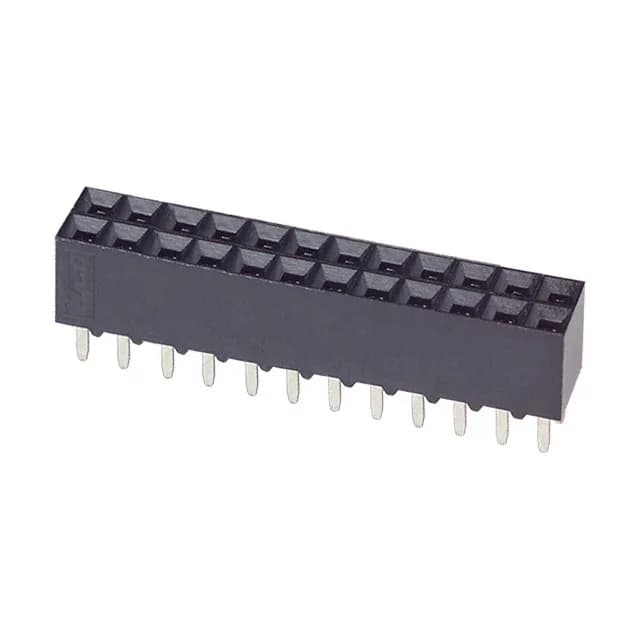

6-534998-2 TE Connectivity AMPMODU Mod IV 24-Position
MPN6-534998-2
Active
TE Connectivity AMPMODU Mod IV, 24-position dual-row female socket receptacle, 0.100" (2.54 mm) pitch, through-hole solder termination, gold-plated mating contacts, rated 2 A per circuit.
$5.3200Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAMPMODU Mod IV
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod IV |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Current rating | 2A |
| Operating temperature | -65°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.265\" (6.73mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 24 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is the mating connector for 6-534998-2?
This receptacle mates with a 24-position, dual-row, 0.100" pitch AMPMODU Mod IV pin header. The push-pull fastening and dual-row layout ensure a secure, polarized connection.
