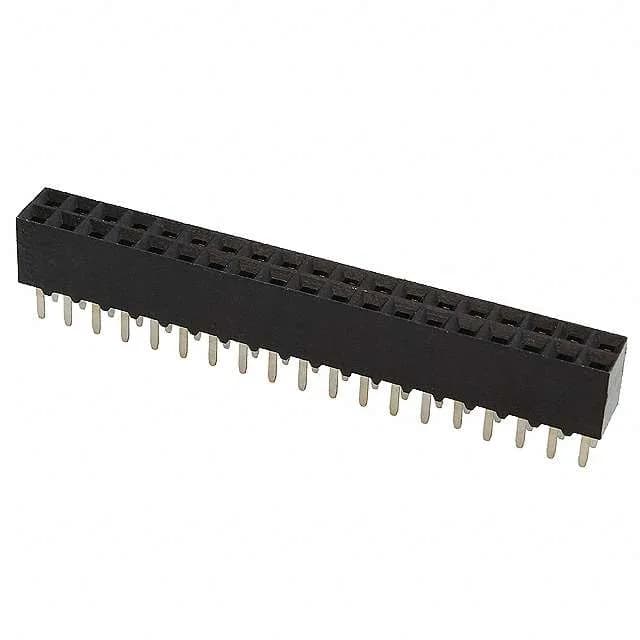

38-Position Dual-Row Receptacle on a 0.100-Inch Grid
The 6-534998-9: The 2 A per-contact rating and gold-on-phosphor-bronze mating interface suit signal-level duty — think I/O, control, or data lines where contact resistance stability over hundreds of cycles matters more than raw current capacity.
The base product number is 534998, which can help locate related documentation or cross-reference within the AMPMODU Mod IV family.
The push-pull latch provides retention without tools, though in high-vibration environments a header with a locking ramp is preferred. Termination is solder-through-hole: the 0.125-inch (3.18 mm) post length fits a standard 1.6 mm PCB with enough protrusion for a reliable solder fillet. The tin-plated posts accept lead-free or tin-lead solder processes.
The housing is glass-filled thermoplastic rated UL 94 V-0. The part is RoHS and REACH compliant per TE Connectivity's standard material declarations — no conflict minerals or restricted substances are reported in the construction.
