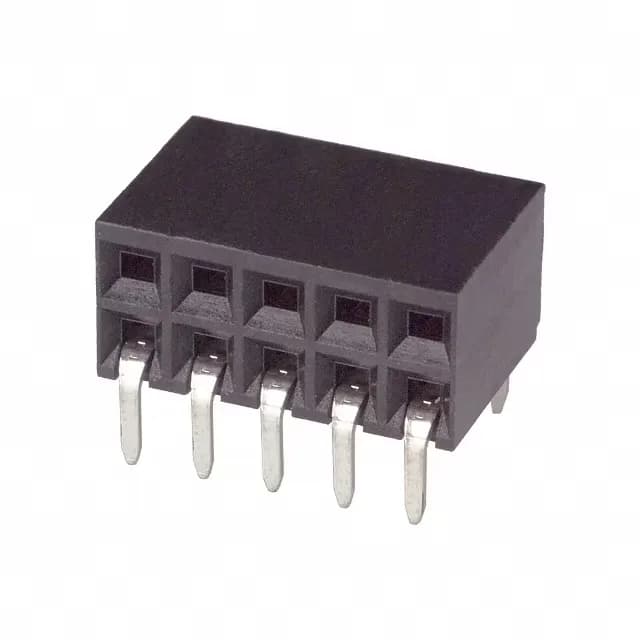

TE Connectivity AMP Connectors AMPMODU Mod II, 10 Position Female Socket Header, 0.100" (2.54mm) Pitch, Through Hole, Right Angle, Gold Mating Finish, 2A, Tube
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Female Socket |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Current rating | 2A |
| Operating temperature | -55°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.238\" (6.05mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Package | Tube |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.115\" (2.92mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 50.0µin (1.27µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 6-535512-4: Tin-lead post finish (50.0µin) is compatible with leaded solder processes; note that this part is RoHS non-compliant per the listed status.
The black housing is keyed by the dual-row geometry—no polarisation key, so the orientation is set by the PCB footprint.
No, the listed RoHS status is non-compliant. The tin-lead post finish (50.0µin) contains lead. If RoHS compliance is required, look for an AMPMODU Mod II receptacle with tin-plated posts.
