Contact system and board fit
The 6-535541-7 is the 19-position single-row member of TE's AMPMODU Mod IV receptacle line, a board-to-board or cable interconnect with gold-plated mating contacts rated 2 A per circuit.

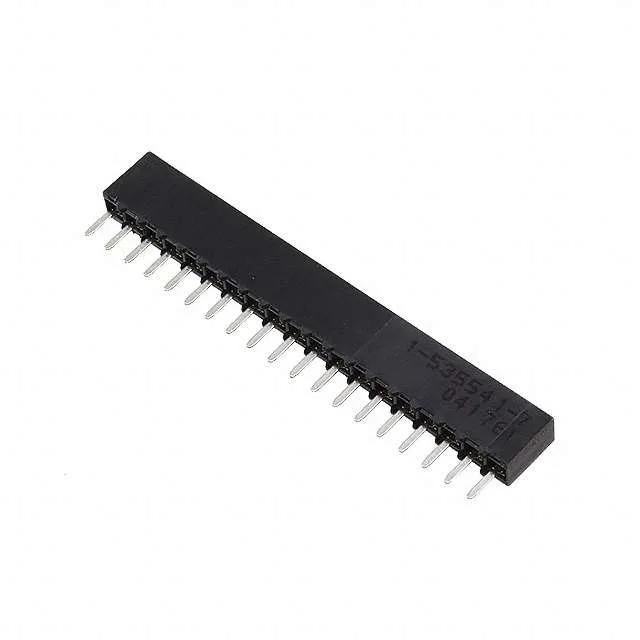

6-535541-7 TE Connectivity AMP Connectors Receptacle, 19 Pos
MPN6-535541-7
Active
TE Connectivity AMP Connectors AMPMODU Mod IV receptacle, order code 6-535541-7, 19 positions, single row, 0.100" (2.54 mm) pitch, 2 A, gold-plated mating contacts, through-hole, solder termination.
$3.0924Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod IV |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Current rating | 2A |
| Operating temperature | -65°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.265\" (6.73mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 19 |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
