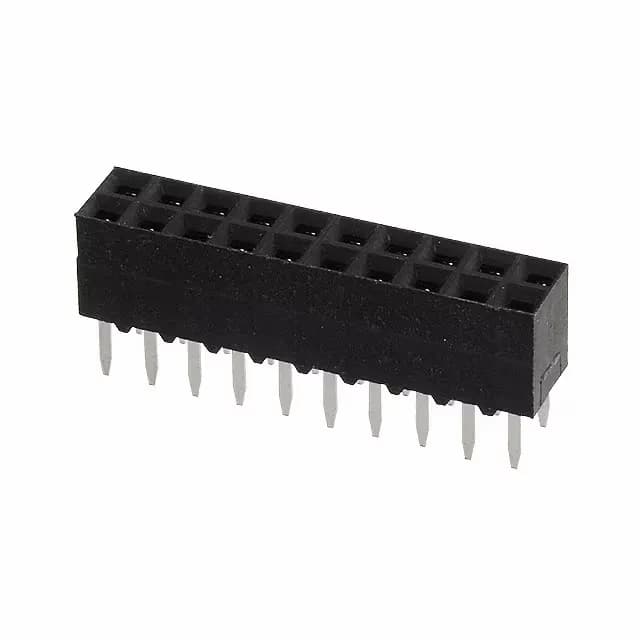

TE Connectivity AMPMODU Mod IV receptacle, order code 6-535585-0, 20 positions, dual row, 0.100" (2.54 mm) pitch, 2 A, tin-plated mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod IV |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Current rating | 2A |
| Operating temperature | -65°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.265\" (6.73mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
The 6-535585-0 is the 20-position member of TE's AMPMODU Mod IV receptacle line, a board-to-board or cable connector family. Rated 2 A per contact with tin-plated mating surfaces, the through-hole receptacle suits moderate-duty signal interconnect.
The 20 positions are arranged in dual rows on a 0.100" (2.54 mm) pitch with 0.100" (2.54 mm) row spacing — the standard AMPMODU Mod IV grid shared across the series.
The housing material carries a UL94 V-0 flammability rating. RoHS and REACH compliance documentation is available from TE Connectivity.
