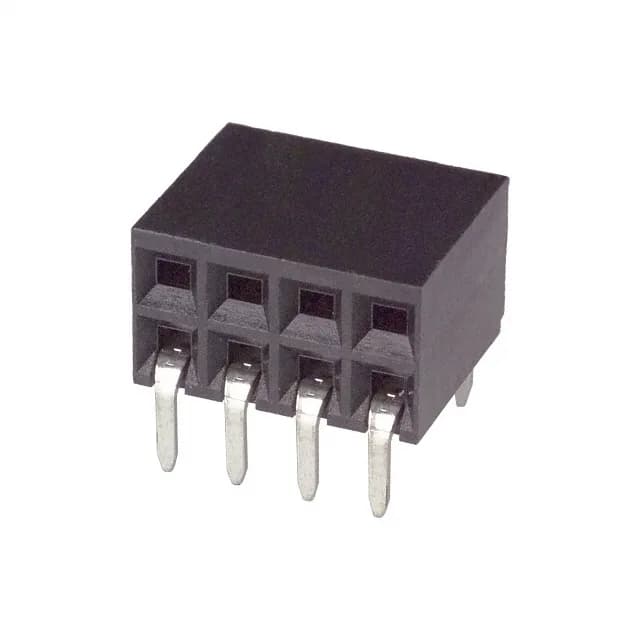

TE Connectivity AMP Connectors AMPMODU Mod II, 6-5535512-3, Female Socket Header (Receptacle), 8 positions, 2.54 mm pitch, 2 rows, Gold mating finish, Right-Angle Through-Hole, RoHS, Active
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Female Socket |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Current rating | 2A |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.238\" (6.05mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.115\" (2.92mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The gold interface handles moderate cycle counts without fretting corrosion — typical for signal-level interconnects in test equipment, instrumentation, or industrial control boards.
Termination is solder to through-hole. The contact length after the board is 0.115" (2.92 mm). The tin post finish (150.0 µinch) wets well in wave or hand-solder processes.
The 6-5535512-3 is an 8-position, 2-row female socket receptacle with all positions loaded. The mating interface accepts a 0.025" square pin header.
