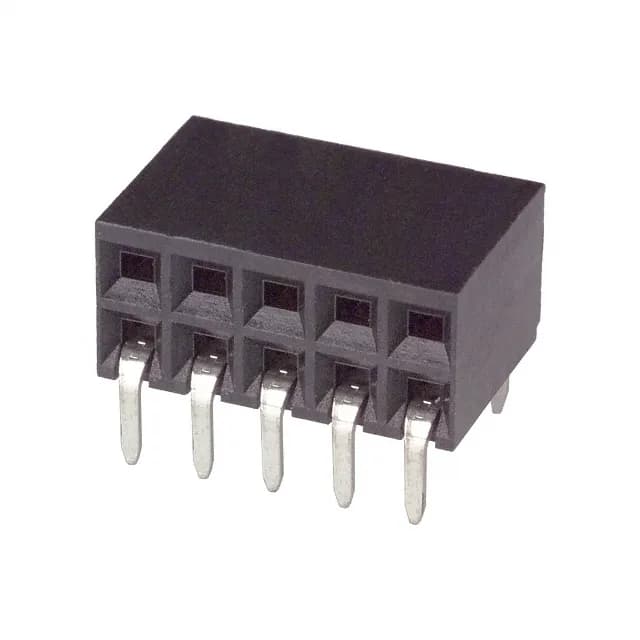

TE Connectivity AMP Connectors AMPMODU Mod II, 10-position right-angle through-hole receptacle, 0.100" (2.54 mm) pitch, gold mating contacts, 2 A rating, UL94 V-0, bulk package.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Female Socket |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Current rating | 2A |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.238\" (6.05mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.115\" (2.92mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Gold plating on the mating contacts (30.0 µinch / 0.76 µm over nickel) supports repeated mating cycles — rated for 2 A per contact at a 30 °C temperature rise. In a field-service or test-equipment application where the connector sees quarterly cycles, that gold layer gives well over a century of reliable contact interface life before wear-through.
For a 12-position requirement, the tube-packaged 5535512-1 is the direct match.
The square contact pins (0.025" square) are the typical mating interface.
