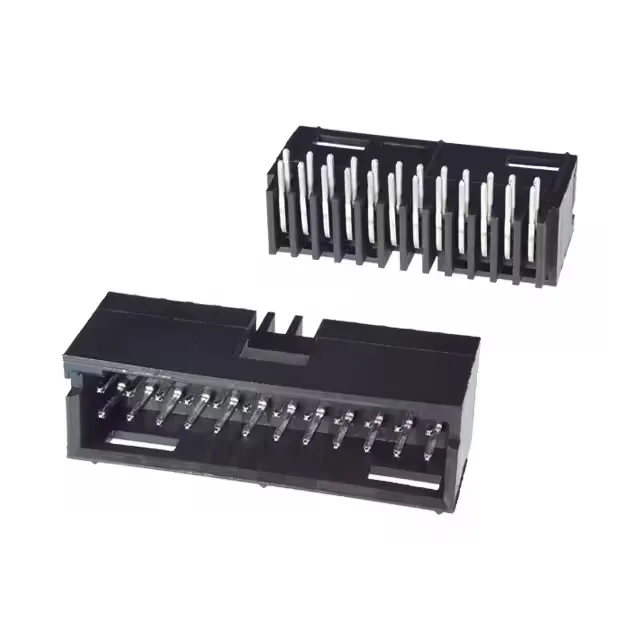

26-circuit shrouded header, right-angle through-hole
The 6-87579-0 is the 26-circuit member of TE's AMPMODU Mod II shrouded header line, designed for board-to-board or cable connections. It carries tin-plated mating contacts rated 3 A, mounts through-hole right-angle, and uses a detent lock for retention.
Series & positions
Within the AMPMODU Mod II 87579 series the 6-87579-0's 26 positions sit between the 20-position 5-87579-0 and the 30-position 7-87579-0 — the 0.100" pitch, dual-row footprint, and tin plating are shared across the series, so match the position count to circuit count.
