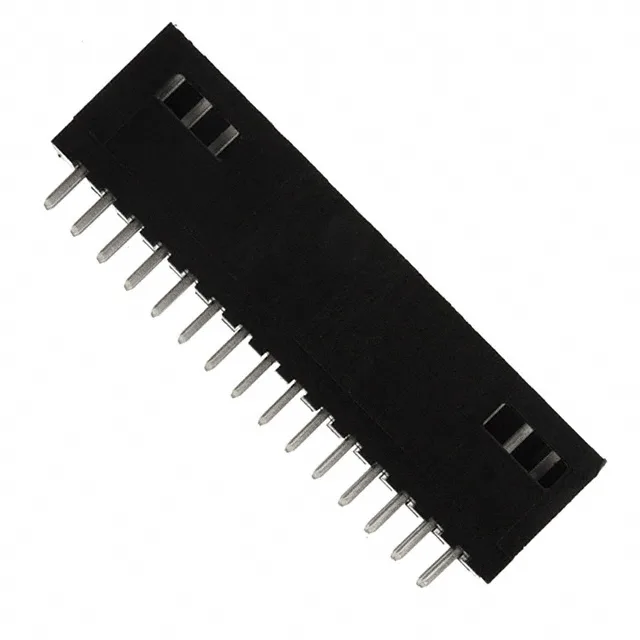

30-Position Shrouded Header at 2.54 mm Pitch
The 6-87589-1: This is a 30-position, dual-row, through-hole header from TE's AMPMODU Mod II series.
The base product number is 87589, which covers the full family of AMPMODU Mod II shrouded headers.
6-87589-1 TE AMPMODU Mod II Header, 30 Pos, 0.100" Pitch
MPN6-87589-1
Active
TE Connectivity AMP Connectors AMPMODU Mod II, Header, 30 Positions, 0.100" (2.54mm) Pitch, Through Hole, Solder, Shrouded - 4 Wall, Detent Lock, Tin Mating Finish, 3A
$6.5700Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.440\" (11.18mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 30 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Overall contact length | 0.533\" (13.55mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
Product details
Frequently asked questions
What is the mating connector for 6-87589-1?
Engineers need to pair with the correct socket or IDC connector to ensure proper fit and signal integrity.
Is 6-87589-1 RoHS compliant?
Compliance is mandatory for many end-products; buyers must verify before purchase to avoid regulatory issues.
Where can I buy 6-87589-1 in stock?
Sourcing buyers need immediate availability to avoid production delays; stock status drives purchase decisions.
What is the lead time for 6-87589-1?
Supply chain planning depends on lead time to ensure on-time delivery and avoid stockouts.
What is the pinout of 6-87589-1?
Design engineers need the pinout for schematic capture and PCB layout to ensure correct connections.
What is the 6-87589-1 datasheet?
The datasheet provides all critical technical specifications needed for validation and design-in.
