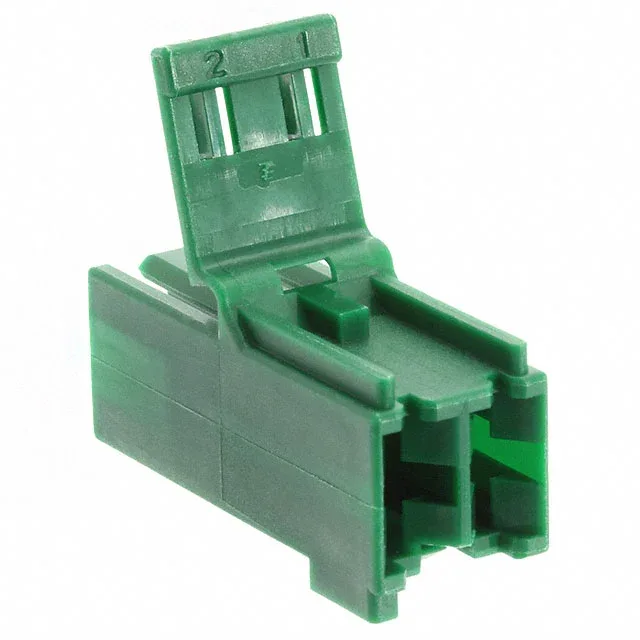

TE Standard Timer receptacle housing, 6-928344-2, 2 positions, 5.00 mm pitch, 1 row, free-hanging, crimp termination, friction lock, green PA66.
| Parameter | Value |
|---|---|
| Series | Standard Timer |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Fastening type | Friction Lock |
| Operating temperature | -40°C ~ 105°C |
| Color | Green |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Note | Contacts Not Included |
| Pitch | 0.197\" (5.00mm) |
| Package | Bulk |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 2 |
For a 2-position connector in a harness that sees occasional disconnection, the lock is enough retention; for constant vibration, the lock paired with a secondary lock clip (available in the series) is the safer call.
This receptacle mates with the Standard Timer plug housing (same series, 2-position, 5.00 mm pitch).
No. The listing explicitly states Contacts Not Included. The housing accepts separately ordered Standard Timer female socket contacts (crimp terminals).
The receptacle's friction lock engages the plug's ramp for positive retention.
The pitch is 5.00 mm (0.197 inches), centerline to centerline between cavities in the single row.
