TE Connectivity AMP Connectors 60322-2
MPN60322-2
Active

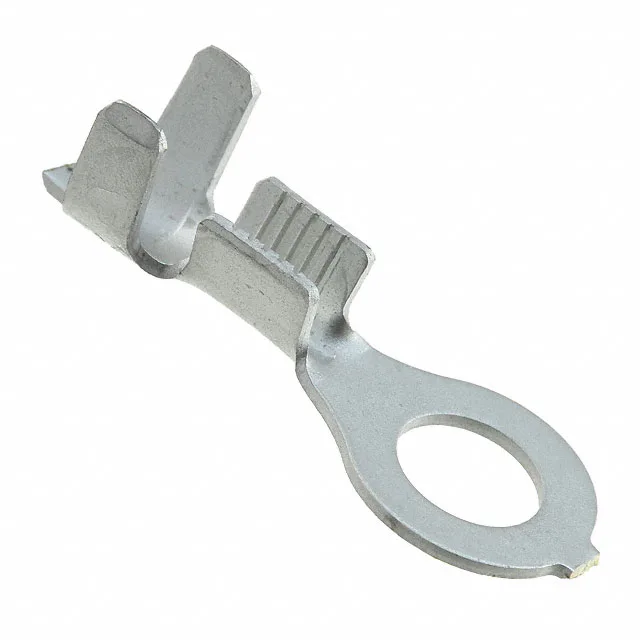

CONN RING CIRC 16-20AWG #8 CRIMP
$0.26Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAmplivar
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Amplivar |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 16-20 AWG |
| Contact material | Brass |
| Width - outer edges | 0.300\" (7.62mm) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Serrated Termination |
| Thickness | 0.020\" (0.51mm) |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Stud (Tab size) | 8 Stud |
| Contact finish | Tin |
| Length - overall | 0.695\" (17.65mm) |
| Insulation diameter | 0.125\" ~ 0.165\" (3.18mm ~ 4.19mm) |
