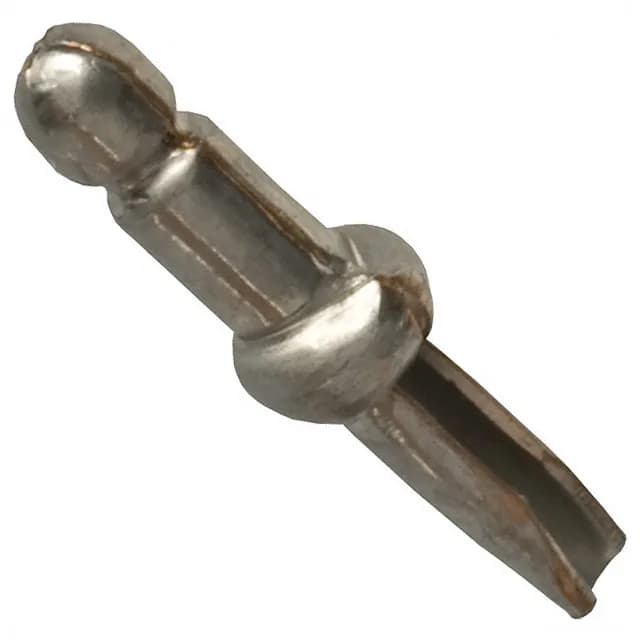

TE Connectivity AMP Connectors 60803-2
MPN60803-2
Active
$0.4800Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Through Hole |
| Terminal type | Single Post |
| Mounting hole diameter | 0.046\" ~ 0.050\" (1.17mm ~ 1.27mm) |
| Terminal style | Flanged |
| Contact material | Phosphor Bronze |
| Package | Bulk |
| Insulation | Non-Insulated |
| Termination | Press-Fit |
| Contact finish | Tin |
| Board thickness | 0.062\" ~ 0.093\" (1.57mm ~ 2.36mm) |
| Flange diameter | 0.090\" (2.29mm) |
| Length - overall | 0.375\" (9.53mm) |
| Length - above flange | 0.160\" (4.06mm) |
| Length - below flange | 0.150\" (3.81mm) |
| Pin size - above flange | 0.058\" (1.47mm) Dia |
