TE Connectivity AMP Connectors 6123738-7
MPN6123738-7
Active

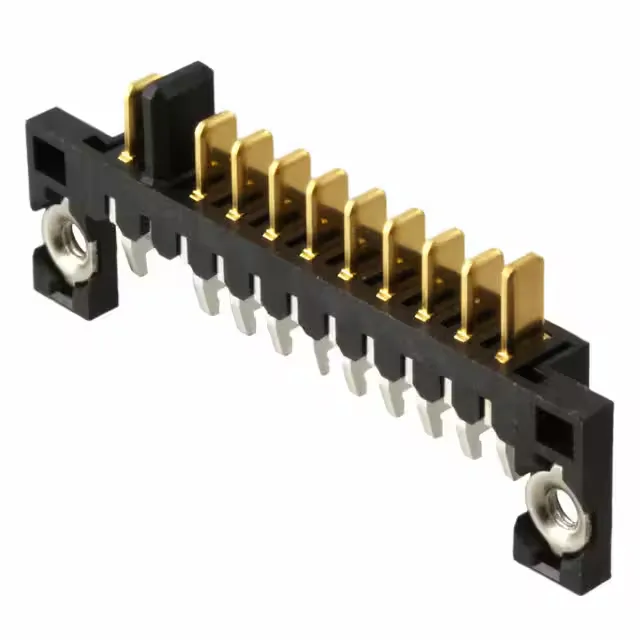

CONN PLUG 10POS 2.50MM R/A SLDR
$6.82Ref. price · indicative, final on quote
RoHSRoHS Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Board Edge, Surface Mount, Right Angle |
| Connector type | Plug, Male Blades |
| Fastening type | Push-Pull |
| Voltage rating | 30 V |
| Current rating | 6 A |
| Operating temperature | -20°C ~ 80°C |
| Color | Black |
| Contact material | Copper Alloy |
| Material - insulation | Polyamide (PA6T), Nylon 6T |
| Pitch | 0.098\" (2.50mm) |
| Package | Tray |
| Features | Board Guide, Solder Retention |
| Termination | Solder |
| Contact finish | Gold |
| Rows | 1 |
| Positions | 10 |
| Contact finish thickness | 11.8µin (0.30µm) |
