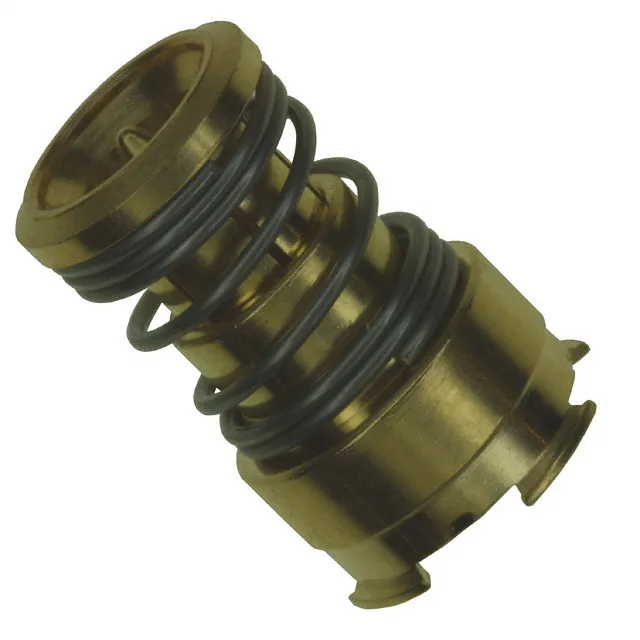

619134-1 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE 619134-1 SMP Compression Mount, 50 Ohm, 6 GHz

MPN619134-1
Active

TE Connectivity 619134-1, Non-Gendered SMP Stacker, 50 Ohms, DC to 6 GHz, 0.2 dB Insertion Loss, 25 Mating Cycles, Surface Mount Compression Termination, 1 Port, Tray.

$10.9690Ref. price · indicative, final on quote
619134-1 datasheet
StockIn Stock (34)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

619134-1 Technical Specifications
ParameterValue
Mounting typeSurface Mount
Connector typeNon-Gendered Stacker
Voltage rating125 V
Frequency - max6 GHz
Operating temperature-40°C ~ 125°C
Body materialBrass
Housing colorGold
Dielectric materialPolycyclohexylenedimethylene Terephthalate (PCT), Polyetheretherketone (PEEK)
Center contact materialBrass
PackageTray
Impedance50 Ohms
Body finishGold
Mating cycles25
Insertion loss0.2dB
Number of ports1
Shield terminationSolder
Contact terminationCompression
Center contact platingGold

Product details

SMP Compression Stacker for Board-to-Board RF

The compression-mount termination (no solder on the centre contact) and surface-mount shield termination suit automated pick-and-place assembly.

What the 25 Mating Cycles Mean for the Application

The 25 mating cycle rating tells you this is a limited-connect RF interconnect, not a frequent-mate test port. The gold-on-gold contact interface (body and centre contact both gold-plated) keeps contact resistance stable through those 25 cycles, but beyond that the plating wear risks degrading the RF path.

Frequently asked questions

Is 619134-1 a surface mount connector?

Yes — the shield termination is solder (surface-mount), and the centre contact uses a compression termination, making it suitable for pick-and-place assembly.

What is the mating cycle life for 619134-1?

The 619134-1 is rated for 25 mating cycles. This is a limited-connect interconnect intended for board-to-board stacking, not frequent field reconnection.
