TE Connectivity 6274124-2 BNC Jack, 75 Ohm, 4 GHz, Obsolete

MPN6274124-2
Obsolete

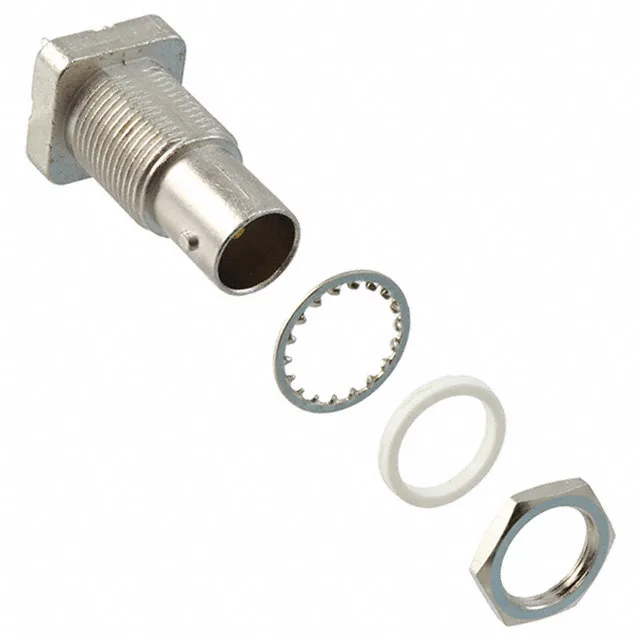

TE Connectivity BNC jack, 75 Ohm, 4 GHz, 500 V, panel mount bulkhead with bayonet lock, press-fit termination, gold-plated beryllium copper center contact.

$8.4300Ref. price · indicative, final on quote
6274124-2 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

6274124-2 Technical Specifications
ParameterValue
Mounting typePanel Mount, Through Hole
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max4 GHz
Mounting featureBulkhead - Front Side Nut
Operating temperature-55°C ~ 85°C
Body materialZinc Die Cast
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBulk
Includes4 pcs - 1 Connector, 1 Nut, 2 Washers
Impedance75 Ohms
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationPress-Fit
Contact terminationPress-Fit
Center contact platingGold

Product details

It terminates with a press-fit shield and center contact, using a PTFE dielectric.

The 75 Ohm impedance is standard for video and broadcast applications. The 4 GHz bandwidth covers HD-SDI signals.

Build and termination notes

The connector ships as a kit: one jack body, one coupling nut, and two washers for the bulkhead mount. The press-fit termination means the center contact and shield are pressed into the PCB or cable assembly — no solder required on the shield side. The PTFE dielectric handles the temperature range from -55°C to 85°C without degrading the signal at 4 GHz. The bayonet lock is field-friendly: a quarter-turn and you are mated, no torque wrench needed.
