TE Connectivity AMP Connectors 6318573-4 — Wire-to-Board Connectors

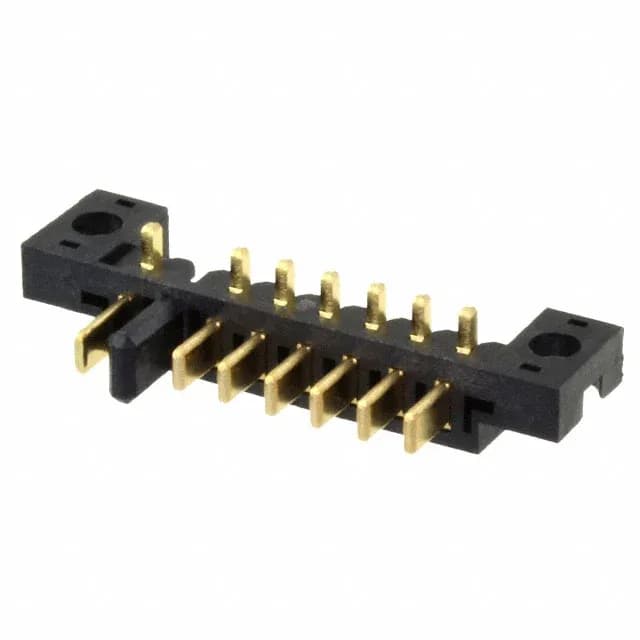

TE Connectivity 6318573-4 Header, 7 Pos, 2.50mm, 7 A

MPN6318573-4
Active

TE Connectivity, Battery Header, 6318573-4, 7 positions, 0.098" (2.50mm) pitch, 1 row, Through Hole, Right Angle, Solder, Gold, 7 A, 30 V.

$4.5600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6318573-4 specifications
ParameterValue
MountingThrough Hole, Right Angle
Connector typeHeader, Male Blades
Fastening typePush-Pull
Voltage rating30 V
Current rating7 A
Operating temperature-30°C ~ 70°C
ColorBlack
Contact materialCopper Alloy
Material - insulationThermoplastic
Pitch0.098\" (2.50mm)
PackageTube
FeaturesBoard Guide, Flange
TerminationSolder
Contact finishGold
Rows1
Positions7
Contact finish thicknessFlash

Product details

2.50mm Battery Header, 7 Circuits, Right-Angle

Gold flash on the copper alloy contacts gives corrosion resistance for the moderate mating cycles a battery connector sees in service.

7 A per Circuit, 30 V — Battery-Grade Power

Right-Angle Through-Hole — Board-Edge Fit

The right-angle orientation lets this header sit at the edge of a PCB, with the mating direction parallel to the board. That saves vertical clearance inside an enclosure — useful when the battery pack or wiring harness approaches from the side.

Frequently asked questions

What is the mating connector for 6318573-4?

This header mates with a matching female receptacle housing in the same TE Connectivity battery connector family, using the 2.50mm pitch and 7-position layout. The specific mating part number depends on the wire gauge and locking feature required.

Where can I buy 6318573-4?

This part is sourced to order against your BOM quantity.
