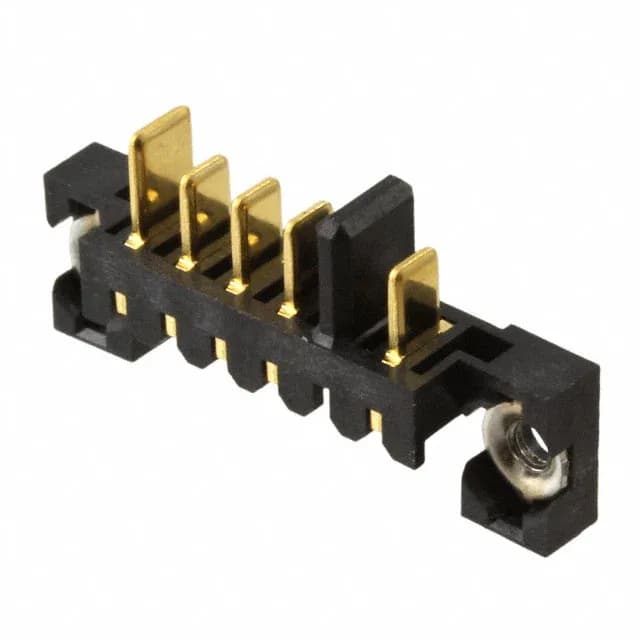

The gold flash finish on the contacts provides corrosion resistance suitable for moderate mating-cycle duty in consumer and light industrial battery packs. Rated at 7 A per circuit, each blade is sized for the main power path from a battery cell or pack — not a signal line. The thermoplastic insulation and -30°C to 70°C operating range suit this connector for indoor consumer electronics, power tools, and portable equipment enclosures where the ambient stays within that window.
Mounting and Mating
This plug mates with a matching battery receptacle (not included) using a push-pull latch — no screw lock or secondary retention. Solder termination to the board is through-hole, giving a stronger mechanical anchor than surface-mount for the strain of cable or battery-pack insertion.
