TE Connectivity AMP Connectors 6376608-1

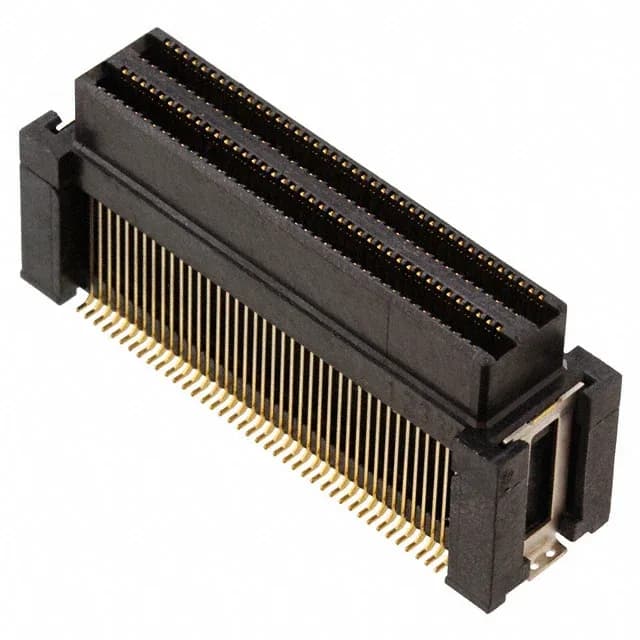

TE Micro-Stack 6376608-1, 80 Pos Receptacle, 0.60mm Pitch

MPN 6376608-1
Active

TE Connectivity Micro-Stack series receptacle, 80 positions, 2 rows, 0.024" (0.60mm) pitch, surface mount, gold contacts, 11.8µin plating, 0.535" (13.59mm) stack height, solder retention feature.

$14.1900 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesMicro-Stack
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

6376608-1 specifications
ParameterValue
SeriesMicro-Stack
MountingSurface Mount
Connector typeReceptacle, Outer Shroud Contacts
Height above board0.535\" (13.59mm)
Pitch0.024\" (0.60mm)
PackageBulk
FeaturesSolder Retention
Contact finishGold
Rows2
Positions80
Contact finish thickness11.8µin (0.30µm)

Product details

The 0.535" (13.59mm) height above board gives a tall stack for a fine-pitch mezzanine, so the z-height budget in the enclosure needs to accommodate that standoff.

Board Layout and Routing at 0.60 mm Pitch

At this spacing, trace widths and via keep-outs need to be planned to avoid crosstalk and maintain manufacturability. The 80 positions in two rows mean 40 per row, so the footprint spans roughly 24 mm along the board edge — a dense interconnect that saves real estate but demands careful fan-out.

The contacts are finished with 11.8µin (0.30µm) of gold over the mating area. It is not a heavy-duty field-service grade; if the application calls for frequent reconnections or exposure to corrosive atmospheres, a thicker gold (like the 50.0µin on the 1-120532-2 sibling) would be more appropriate.
