TE Connectivity AMP Connectors 640383-8 — Pin Headers

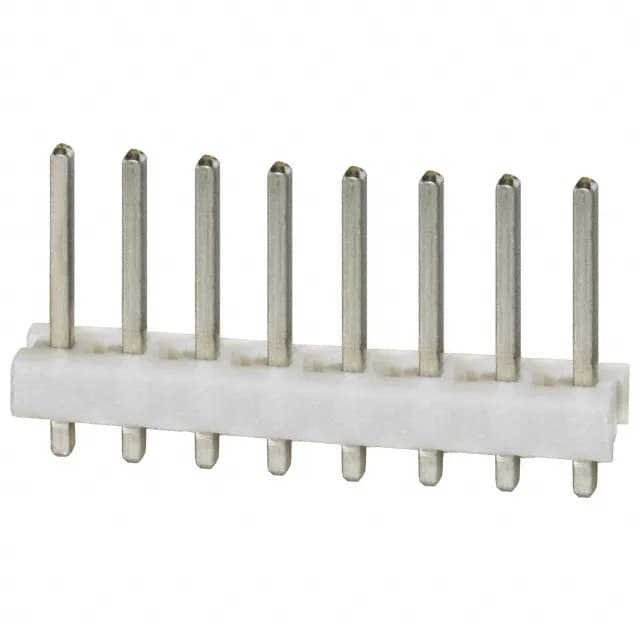

640383-8 TE Connectivity MTA-156 Header, 8 Pos, 3.96mm Pitch

MPN640383-8
Active

TE Connectivity AMP Connectors MTA-156 series, 640383-8, Board to Cable/Wire, 8 Positions, 0.156" (3.96mm) Pitch, Through Hole, Solder, Tin Contacts, UL94 V-0

$0.8500Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesMTA-156
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

640383-8 key specifications
ParameterValue
SeriesMTA-156
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Voltage rating600VAC
Current ratingVaries by Wire Gauge
Operating temperature-55°C ~ 105°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.125\" (3.18mm)
Insulation materialThermoplastic, Glass Filled
Material flammability ratingUL94 V-0

All specifications

640383-8 additional specifications
ParameterValue
StyleBoard to Cable/Wire
PackageBulk
ShroudingUnshrouded
TerminationSolder
ApplicationsGeneral Purpose, Industrial
Contact shapeSquare
Rows1
Pitch0.156\" (3.96mm)
Positions8
Contact finish - postTin
Contact length - post0.125\" (3.18mm)
Overall contact length0.650\" (16.51mm)
Contact finish - matingTin
Contact length - mating0.400\" (10.16mm)

Product details

Through-hole solder termination — the 0.125" (3.18mm) post length gives a solid solder joint on a standard 0.062" board. The 0.125" (3.18mm) insulation height leaves clearance under the header for trace routing.

The closest functional second-source is the 1-292164-1 from the CT series — also a single-row, unshrouded header with tin contacts, but with 11 positions on a 0.079" (2.00mm) pitch and a right-angle orientation. The 640383-8 gives you a wider pitch (3.96mm vs 2.00mm) for easier routing and a vertical through-hole mount, while the 1-292164-1 offers a higher circuit count in a denser footprint.
