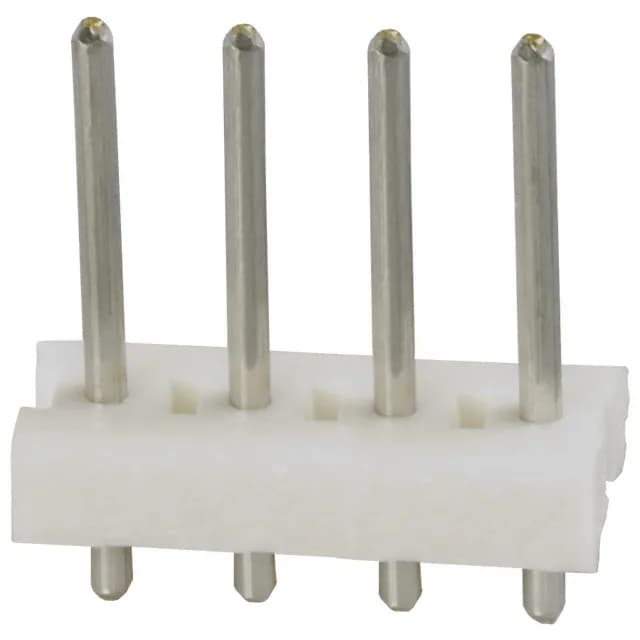

TE 640384-4 MTA-156 Header, 4-Pos 0.156" Pitch

MPN640384-4
Active

TE Connectivity AMP Connectors MTA-156 header, order code 640384-4, 4 positions, single row, 0.156" (3.96 mm) pitch, 600 VAC, tin-plated mating contacts, through-hole, solder termination.

$0.4200Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

640384-4 key specifications
ParameterValue
SeriesMTA-156
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Voltage rating600VAC
Current ratingVaries by Wire Gauge
Operating temperature-55°C ~ 105°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.125\" (3.18mm)
Insulation materialThermoplastic, Glass Filled
Material flammability ratingUL94 V-0

All specifications

640384-4 additional specifications
ParameterValue
StyleBoard to Cable/Wire
PackageBulk
ShroudingUnshrouded
TerminationSolder
ApplicationsGeneral Purpose, Industrial
Contact shapeCircular
Rows1
Pitch0.156\" (3.96mm)
Positions4
Contact finish - postTin
Contact length - post0.125\" (3.18mm)
Overall contact length0.650\" (16.51mm)
Contact finish - matingTin
Contact length - mating0.400\" (10.16mm)

Product details

4-position unshrouded header, 0.156" pitch

The 640384-4 is the 4-circuit member of TE Connectivity's MTA-156 unshrouded header line, a single-row board-to-wire interconnect rated 600 VAC with tin-plated mating contacts.

Position count within the MTA-156 series

Within the MTA-156 series the 640384-4's 4 positions sit between the 2-position and 6-position siblings — the 0.156" pitch, unshrouded profile, and through-hole termination are shared across the series, so match the position count to the circuit count required.

Frequently asked questions

What compliance documentation is available for 640384-4?

RoHS and REACH compliance documentation is provided by TE Connectivity AMP Connectors per the standard product drawing.
