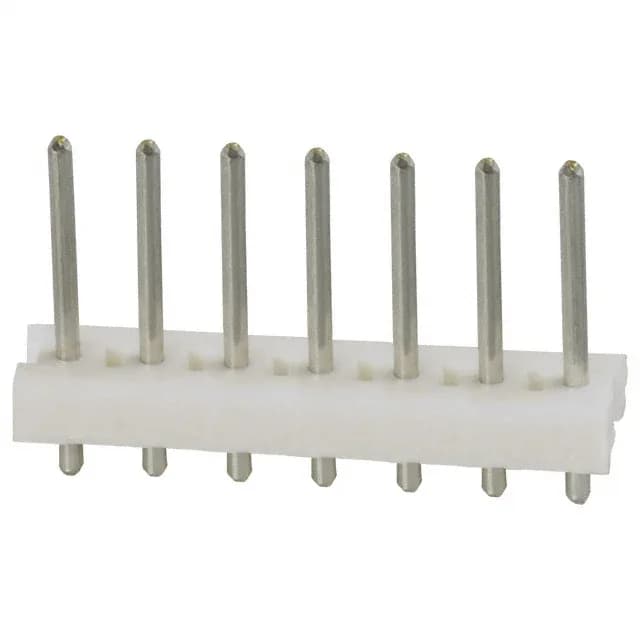

TE Connectivity AMP Connectors MTA-156 series, 640384-7 — unshrouded through-hole header, 7 positions single row, 0.156" (3.96mm) pitch, tin-plated contacts, UL94 V-0 thermoplastic housing, rated 600VAC, operating temperature -55°C to 105°C.
| Parameter | Value |
|---|---|
| Series | MTA-156 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Voltage rating | 600VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.125\" (3.18mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 7 |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Overall contact length | 0.650\" (16.51mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.400\" (10.16mm) |
The 0.156" (3.96mm) pitch sets the PCB footprint and the per-contact current ceiling — at the rated voltage of 600VAC, the current is limited by the wire gauge used, not the header itself.
Tin avoids the cost premium of gold and is compatible with the tin-plated terminals in the MTA-156 receptacle.
The pin pitch is 0.156" (3.96mm), which is the standard for the MTA-156 series. This sets the PCB footprint and the spacing for the mating receptacle.
