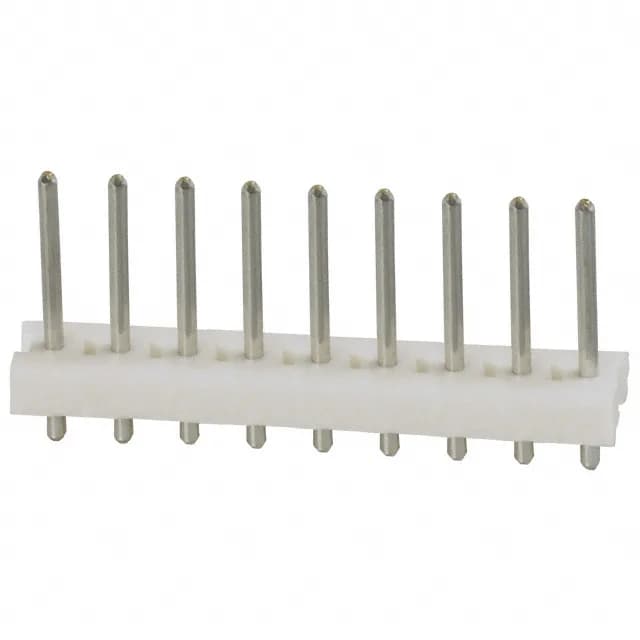

TE Connectivity AMP Connectors MTA-156 header, order code 640384-9, 9 positions, single row, 0.156" (3.96mm) pitch, 600VAC, tin-plated mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Series | MTA-156 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Voltage rating | 600VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.125\" (3.18mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 9 |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Overall contact length | 0.650\" (16.51mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.400\" (10.16mm) |
The 640384-9 is the 9-circuit member of TE's MTA-156 unshrouded header line, a board-to-cable/wire interconnect for general-purpose and industrial applications. Tin-plated mating contacts, single-row layout at 0.156" (3.96mm) pitch, through-hole solder termination. Rated 600VAC; current varies by wire gauge. UL94 V-0 glass-filled thermoplastic housing, natural colour.
The housing material is rated UL94 V-0. RoHS and REACH compliance documentation is provided by TE Connectivity AMP Connectors for this part.
