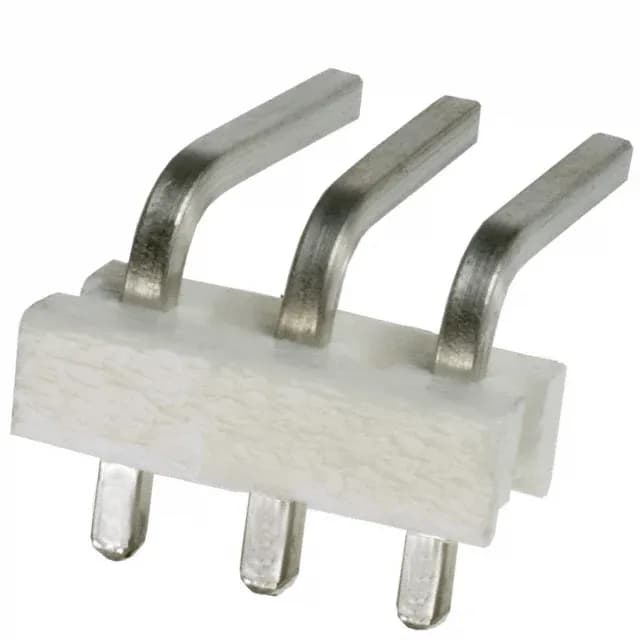

TE Connectivity AMP Connectors MTA-156 header, 640385-3, 3 positions, single row, right-angle through-hole, 3.96mm pitch, tin-plated square pins, unshrouded, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | MTA-156 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Voltage rating | 600VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.125\" (3.18mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.390\" (9.91mm) |
The 640385-3: The 0.390" (9.91mm) mating pin length provides enough engagement depth for standard MTA-156 receptacle contacts. The 0.125" (3.18mm) solder post length is typical for through-hole boards up to 1.6mm thick.
RoHS compliant. The base product number is 640385, so the -3 suffix indicates the 3-position variant within the series.
The mating half is an MTA-156 receptacle housing (unshrouded header mates with the corresponding receptacle). The 3.96mm pitch and single-row layout are shared across the series — select the receptacle with the same circuit count and the matching crimp terminal for your wire gauge.
