TE Connectivity AMP Connectors 640385-5 — Pin Headers

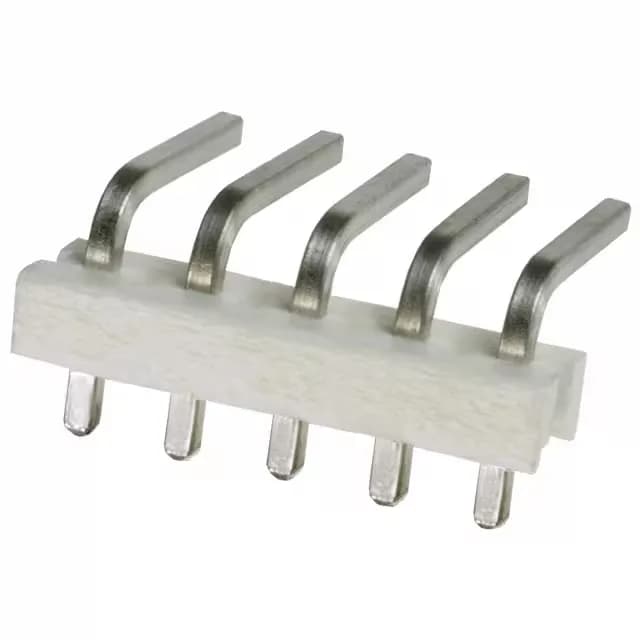

640385-5 TE Connectivity AMP Connectors MTA-156 Header

MPN640385-5
Active

TE Connectivity AMP Connectors MTA-156 header, 640385-5, 5 positions, single row, 0.156" (3.96 mm) pitch, right-angle through-hole, tin-plated contacts, UL94 V-0 housing, ROHS3 compliant.

$0.7400Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMTA-156
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

640385-5 key specifications
ParameterValue
SeriesMTA-156
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Voltage rating600VAC
Current ratingVaries by Wire Gauge
Operating temperature-55°C~105°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.125\" (3.18mm)
Insulation materialThermoplastic, Glass Filled
Material flammability ratingUL94 V-0

All specifications

640385-5 additional specifications
ParameterValue
StyleBoard to Cable/Wire
PackageBulk
ShroudingUnshrouded
TerminationSolder
ApplicationsGeneral Purpose, Industrial
Contact shapeSquare
Rows1
Pitch0.156\" (3.96mm)
Positions5
Contact finish - postTin
Contact length - post0.125\" (3.18mm)
Contact finish - matingTin
Contact length - mating0.390\" (9.91mm)

Product details

5-Position Right-Angle Header in the MTA-156 Series

The 640385-5: It uses a 0.156" (3.96 mm) pitch — the standard spacing for this wire-to-board family — and terminates via solder to a through-hole PCB.

The glass-filled thermoplastic provides dimensional stability during soldering and in service.

It is ROHS3 compliant. The base product number is 640385; this specific variant is the 5-position, right-angle, tin-plated version. The bulk package suits production runs where the header is fed into a wave-solder process.

Frequently asked questions

What is the mating connector for 640385-5?

The 640385-5 mates with a 5-position MTA-156 receptacle housing (e.g., TE 640386 series). The 0.156" pitch and keying ensure correct alignment. Confirm the receptacle's wire gauge and terminal part number for your current rating.

Is 640385-5 RoHS compliant?

Yes, it is ROHS3 compliant per the manufacturer's listing.
