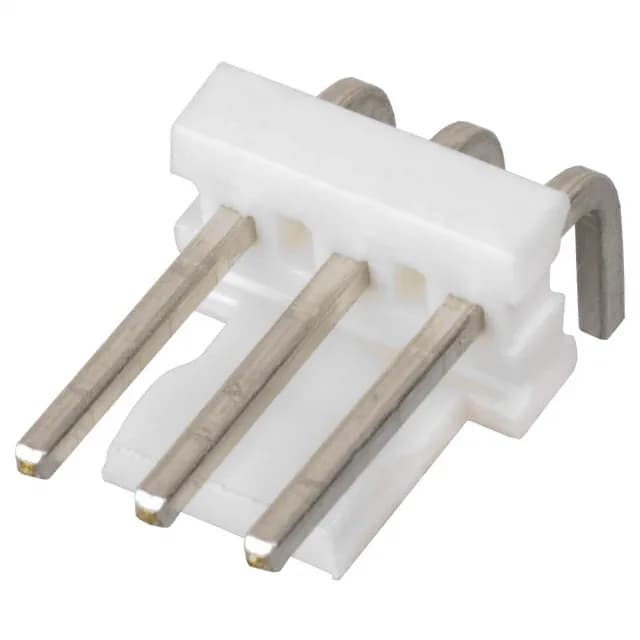

TE Connectivity AMP Connectors MTA-156 series, 640387-3, Board to Cable/Wire, Header, 3 Positions, 0.156" (3.96mm) Pitch, Right Angle, Through Hole, Solder, Friction Lock, Tin Contacts, UL94 V-0
| Parameter | Value |
|---|---|
| Series | MTA-156 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 600VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.300\" (7.62mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.400\" (10.16mm) |
Its 0.156" (3.96mm) pitch is wider than the common 0.100" headers, giving more room per contact for routing and a higher current ceiling before the temperature rise hits the housing limit.
Both the mating and post finishes are tin, not gold. For a 3-position header, expect the per-contact current to be in the 5-7 A range with 18-20 AWG wire at 25°C ambient; derate above that per the wire manufacturer's curve.
Yes, the 640387-3 is ROHS3 compliant per the manufacturer's listing.
