TE Connectivity AMP Connectors 640387-4 — Pin Headers

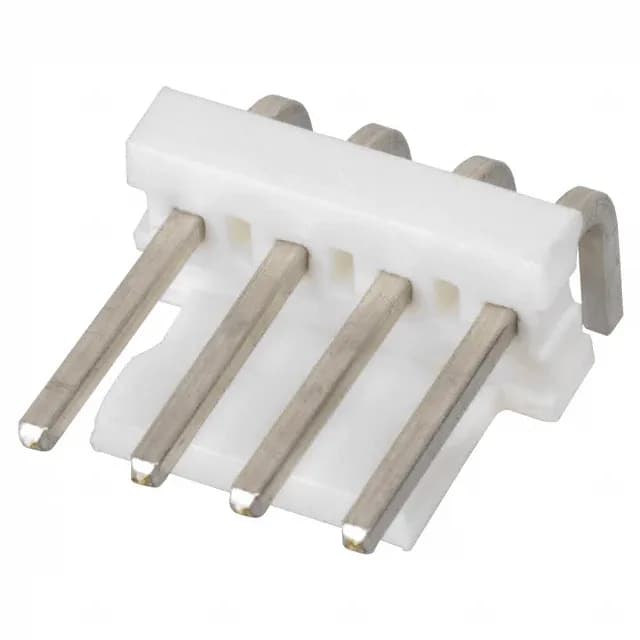

640387-4 TE MTA-156 4-Position Right-Angle Header Friction

MPN640387-4
Active

TE Connectivity AMP Connectors MTA-156 series, 640387-4, board-to-cable/wire header, 4 positions, single row, 0.156" (3.96 mm) pitch, through-hole right-angle, tin-plated square pins, shrouded 1 wall, friction lock, UL94 V-0.

$0.5100Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 640387-4 datasheet (PDF)
RoHSROHS3 Compliant
SeriesMTA-156
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

640387-4 key specifications
ParameterValue
SeriesMTA-156
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeFriction Lock
Voltage rating600VAC
Current ratingVaries by Wire Gauge
Operating temperature-55°C ~ 105°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.300\" (7.62mm)
Insulation materialThermoplastic, Glass Filled

All specifications

640387-4 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
ShroudingShrouded - 1 Wall
TerminationSolder
ApplicationsGeneral Purpose, Industrial
Contact shapeSquare
Rows1
Pitch0.156\" (3.96mm)
Positions4
Contact finish - postTin
Contact length - post0.125\" (3.18mm)
Contact finish - matingTin
Contact length - mating0.400\" (10.16mm)

Product details

MTA-156 4-Position Right-Angle Header with Friction Lock

Rated 600 VAC, with current capacity varying by wire gauge (per TE application notes for the MTA-156 system).

Right-Angle Through-Hole Mounting for Tight Enclosures

The through-hole solder tails are 0.125" (3.18 mm) long, and the mating pin length is 0.400" (10.16 mm), providing enough reach for standard MTA-156 receptacles. Compared to a straight vertical header, this right-angle version suits board-edge mounting where the cable bundle must route along the panel wall rather than stand up.

Frequently asked questions

Is 640387-4 the TE MTA-156 4 position right-angle header?

Yes, 640387-4 is the TE MTA-156 4-position right-angle header. It is a single-row, 0.156" pitch board-to-cable/wire header with a friction lock and tin-plated contacts.

Does 640387-4 have a friction lock?

Yes, 640387-4 includes a friction lock that provides retention against the mating MTA-156 receptacle, reducing the risk of disconnection under vibration.
