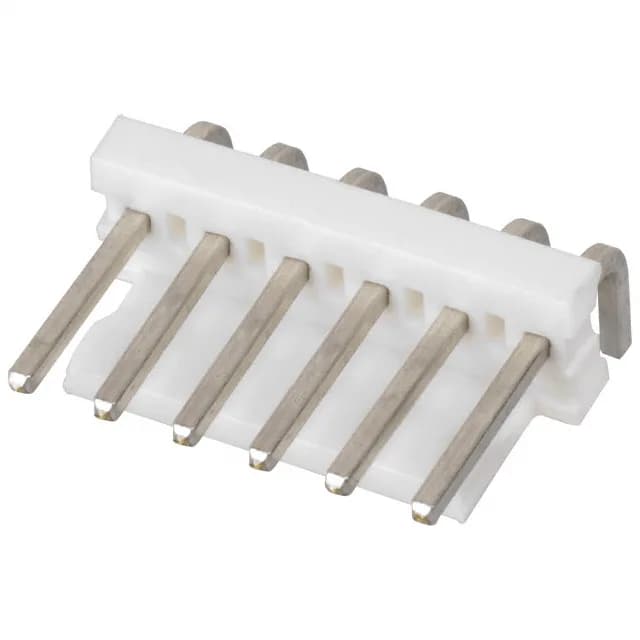

TE Connectivity AMP MTA-156 header, 640387-6, 6-position single-row, 3.96 mm pitch, right-angle through-hole, tin-plated male pins, shrouded one wall, friction lock, UL94 V-0 natural thermoplastic, RoHS3 compliant.
| Parameter | Value |
|---|---|
| Series | MTA-156 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 600VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.300\" (7.62mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.400\" (10.16mm) |
Tin is a cost-effective finish for moderate mating cycles.
The single-wall shroud leaves the top of the pins exposed, which aids visual alignment during manual assembly but does not provide full pin protection. Insulation height of 0.300 inch (7.62 mm) above the board gives clearance for the mating receptacle's latch.
The pin pitch is 0.156 inch (3.96 mm), measured centre-to-centre between adjacent pins. This is the standard pitch for the MTA-156 series and sets the PCB hole pattern.
Yes, 640387-6 is ROHS3 compliant, meaning it meets the EU RoHS directive for restricted substances including lead, mercury, and cadmium.
The mating half is an MTA-156 receptacle housing (e.g., TE 640250 series) with crimp terminals. The friction lock on the header engages the latch on the receptacle for a secure wire-to-board connection.
