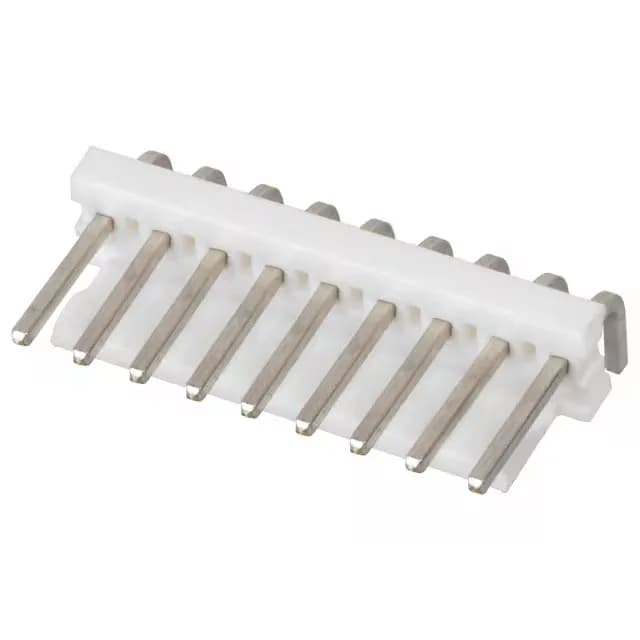

TE Connectivity AMP Connectors MTA-156 header, 640387-9, 9 positions, 0.156" (3.96mm) pitch, right-angle through-hole, shrouded 1 wall, friction lock, UL94 V-0, tin-plated contacts.
| Parameter | Value |
|---|---|
| Series | MTA-156 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 600VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.300\" (7.62mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 9 |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.400\" (10.16mm) |
The 640387-9: This MTA-156 header carries 9 positions on a 0.156" (3.96mm) pitch, single row, all positions loaded.
A friction lock on the header provides positive retention with the mating receptacle, resisting vibration in industrial and general-purpose equipment. No secondary latch or TPA — the friction lock is the primary retention mechanism.
It is RoHS compliant.
The pitch is 0.156" (3.96mm), single row, 9 positions, all loaded. The header is shrouded with one wall and uses a friction lock for mating retention.
