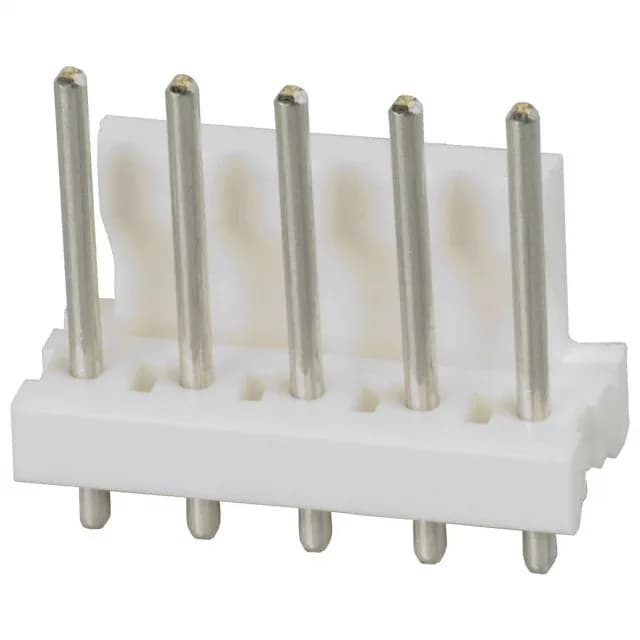

TE Connectivity AMP MTA-156 header, 5-position single-row, 0.156" (3.96 mm) pitch, shrouded one wall, friction lock, through-hole solder termination, tin-plated male pins, UL94 V-0 natural thermoplastic housing.
| Parameter | Value |
|---|---|
| Series | MTA-156 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 600VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.425\" (10.80mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Overall contact length | 0.650\" (16.51mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.400\" (10.16mm) |
The 640388-5 carries a wider 3.96 mm pitch and a friction lock versus the detent lock on the CT part. The voltage rating on the 640388-5 is 600 VAC, compared to 125 VAC on the 1-292164-1 — a meaningful difference for line-voltage applications.
The 640388-5 mates with a 5-position MTA-156 receptacle housing that accepts the matching crimp terminals. The friction lock on the header engages with the corresponding ramp on the receptacle. Confirm the receptacle part number against your wire gauge and terminal selection.
