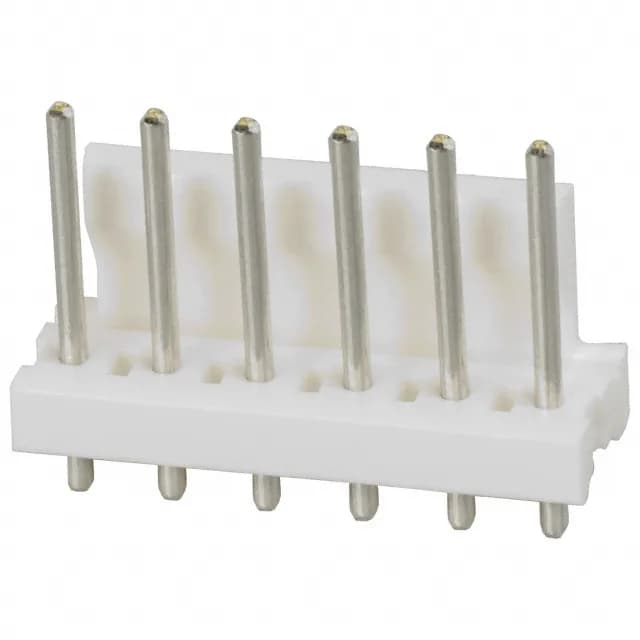

TE Connectivity AMP Connectors MTA-156 series, 640388-6, Board to Cable/Wire header, 6 positions, 0.156" (3.96mm) pitch, shrouded 1 wall, through hole, friction lock, tin contacts, UL94 V-0, -55°C to 105°C, 600VAC.
| Parameter | Value |
|---|---|
| Series | MTA-156 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 600VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.425\" (10.80mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Overall contact length | 0.650\" (16.51mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.400\" (10.16mm) |
The 0.156" pitch matches the MTA-156 receptacle family, so the PCB footprint is a standard 0.156" row spacing. The shrouded 1-wall design protects the pins from one side during handling.
ROHS3 compliant and rated UL94 V-0 for the thermoplastic housing.
Yes, it is ROHS3 compliant.
