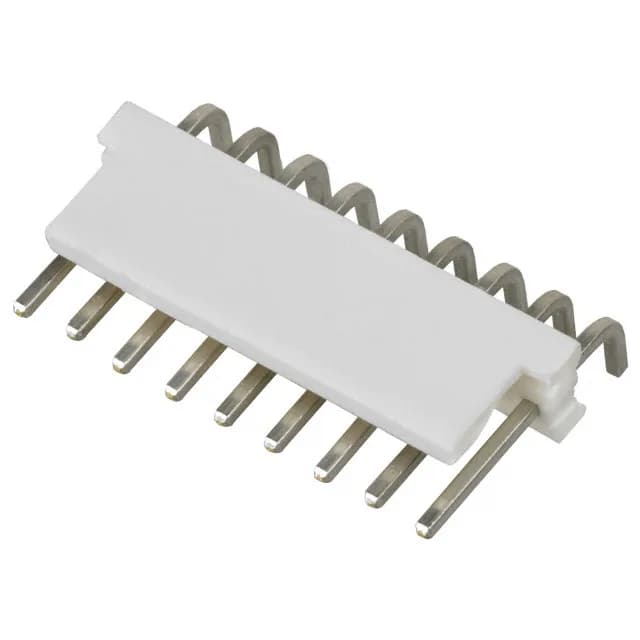

9-position MTA-156 right-angle header
The 0.156" (3.96mm) pitch sets the board footprint and the mating interface with the corresponding MTA-156 receptacle housing and crimp terminals. Tin-plated mating contacts and post finish keep the cost down for applications where mating cycles are infrequent.
Voltage rating is 600VAC, which suits line-voltage power distribution inside equipment where the connector is protected from direct contact. The 0.300" (7.62mm) insulation height provides clearance between rows when mated.
ROHS3 compliant. The base product number is 640389; this variant carries 9 positions loaded (all positions filled).
