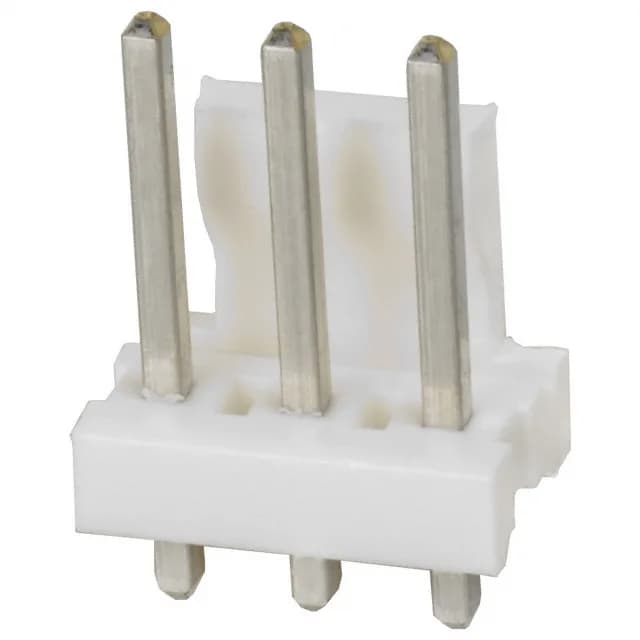

TE Connectivity AMP Connectors MTA-156 series header, 640445-3, 3-position single-row male pin header, 0.156" (3.96mm) pitch, through-hole solder termination, tin-plated contacts, friction lock, UL94 V-0 natural thermoplastic housing.
| Parameter | Value |
|---|---|
| Series | MTA-156 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 600VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.425\" (10.80mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Overall contact length | 0.650\" (16.51mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.400\" (10.16mm) |
The 640445-3: The friction lock secures the connector pair against vibration, and the shrouded 1-wall design protects the pins during handling. The UL94 V-0 glass-filled thermoplastic housing meets flame-rating requirements for equipment inside enclosures.
The post finish is also tin, compatible with standard solder processes.
The insulation height of 0.425" (10.80mm) provides clearance above the board. All 3 positions are loaded.
The 640445-3 mates with a corresponding MTA-156 crimp receptacle housing. The friction lock on the header engages with the latch on the receptacle. Confirm the circuit count and pitch match your application.
