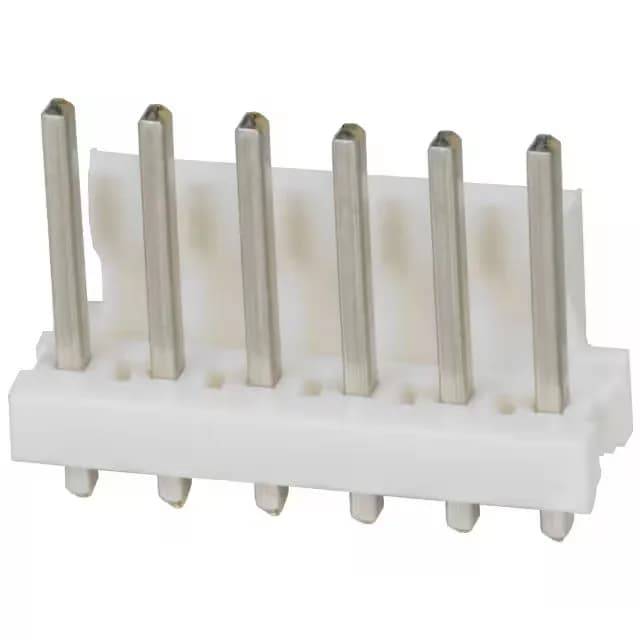

TE Connectivity AMP Connectors MTA-156, Board to Cable/Wire, Header, 6 Positions, 0.156" (3.96mm) Pitch, Through Hole, Solder, Tin Mating Finish, Friction Lock, UL94 V-0, Active, RoHS
| Parameter | Value |
|---|---|
| Series | MTA-156 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 600VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.425\" (10.80mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Overall contact length | 0.650\" (16.51mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.400\" (10.16mm) |
The 640445-6: The friction lock holds the mating receptacle in place under light vibration, but there's no secondary lock or TPA, so it's best suited for fixed installations where the cable isn't tugged or routed through moving panels.
Yes, the 640445-6 is RoHS compliant per the manufacturer's listing.
The 640445-6 mates with a MTA-156 receptacle housing (e.g., 640441 series) that accepts the matching crimp terminals. Confirm the circuit count and keying before ordering.
